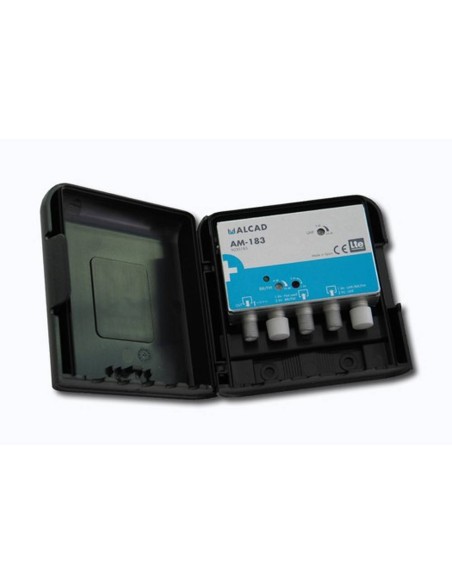

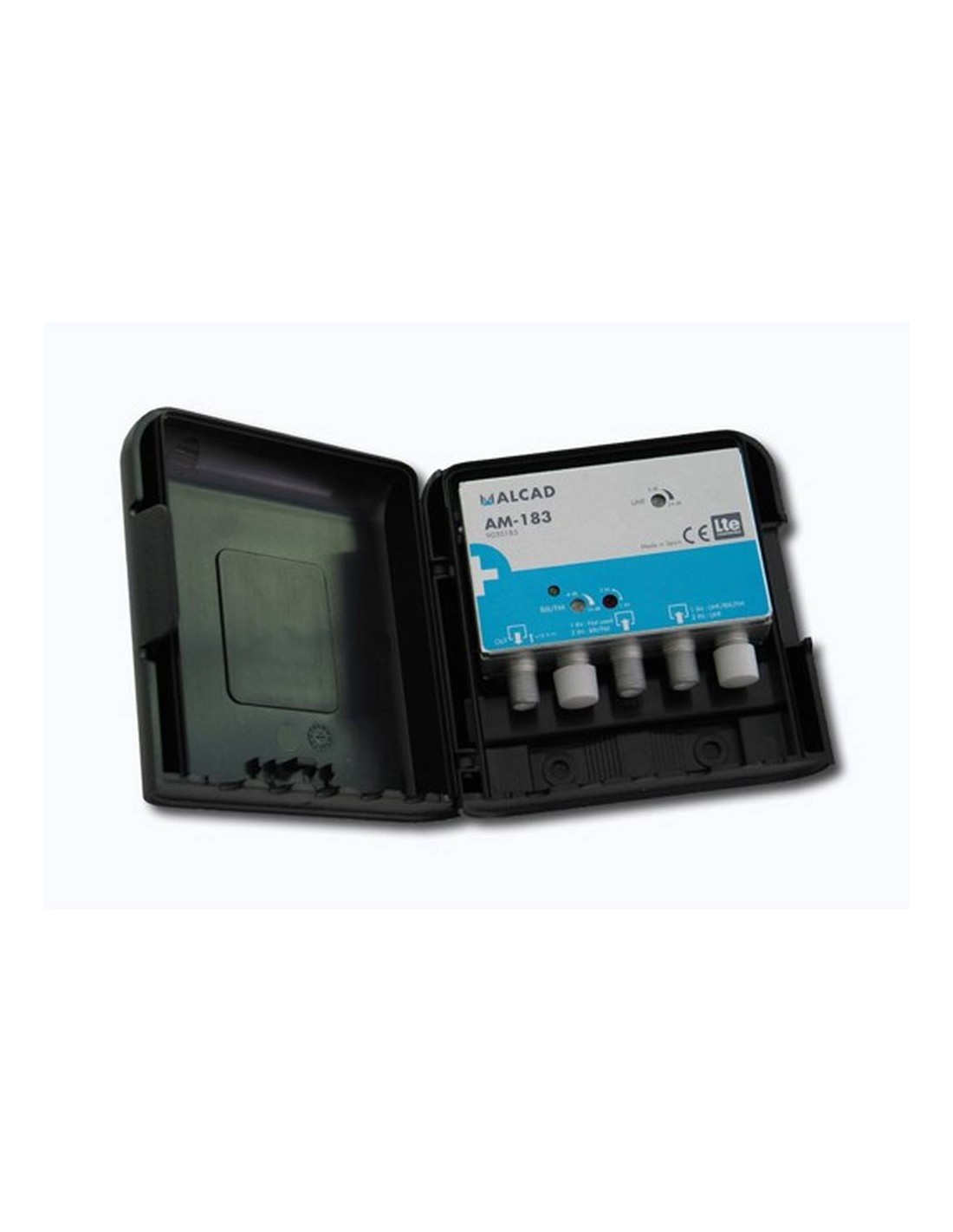

AM-183 amplifier 1/2 UHF inputs 24dB LTE 12VDC
€67.52
Tax included
Armored zamak chassis, encapsulated in a weatherproof plastic box.
Easy to open and close, it allows the chassis to tilt to facilitate handling.
Possibility of installation on a mast using a polyamide flange and installation on a wall.
Sun and water resistant (IP53).
Greater isolation between inputs and output.
Type F screw-on or compression connectors.
DESCRIPTION
Broadband mast amplifiers, compatible with the emission of LTE mobile telephone signals with UHF amplification band 470 - 694 MHz.
Includes a rejection filter for LTE (694 MHz).
They have one or two inputs to amplify and combine the signals from the antennas, which can be a single input with combined bands or two inputs with separate bands.
They are fed through the coaxial cable from a feeder installed inside the building.
APPLICATIONS
Individual digital and analogue terrestrial TV installations that are affected by the emission of LTE mobile telephone signals.
Amplifies and mixes the previous signals from several antennas.
The signal obtained can be distributed to a large number of TV outlets using a single coaxial cable.
9030185
8425988234346
