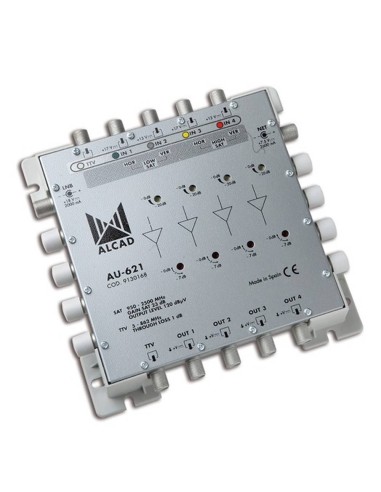

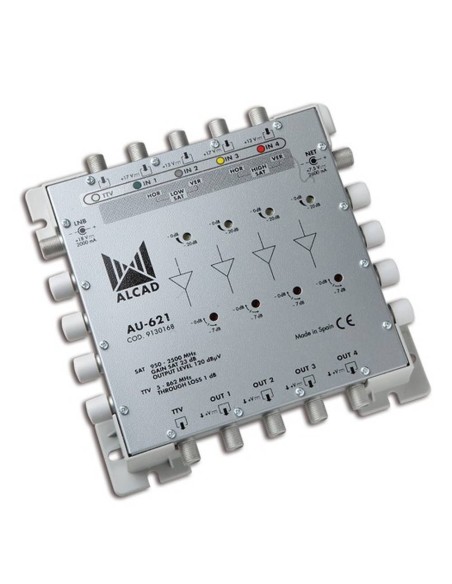

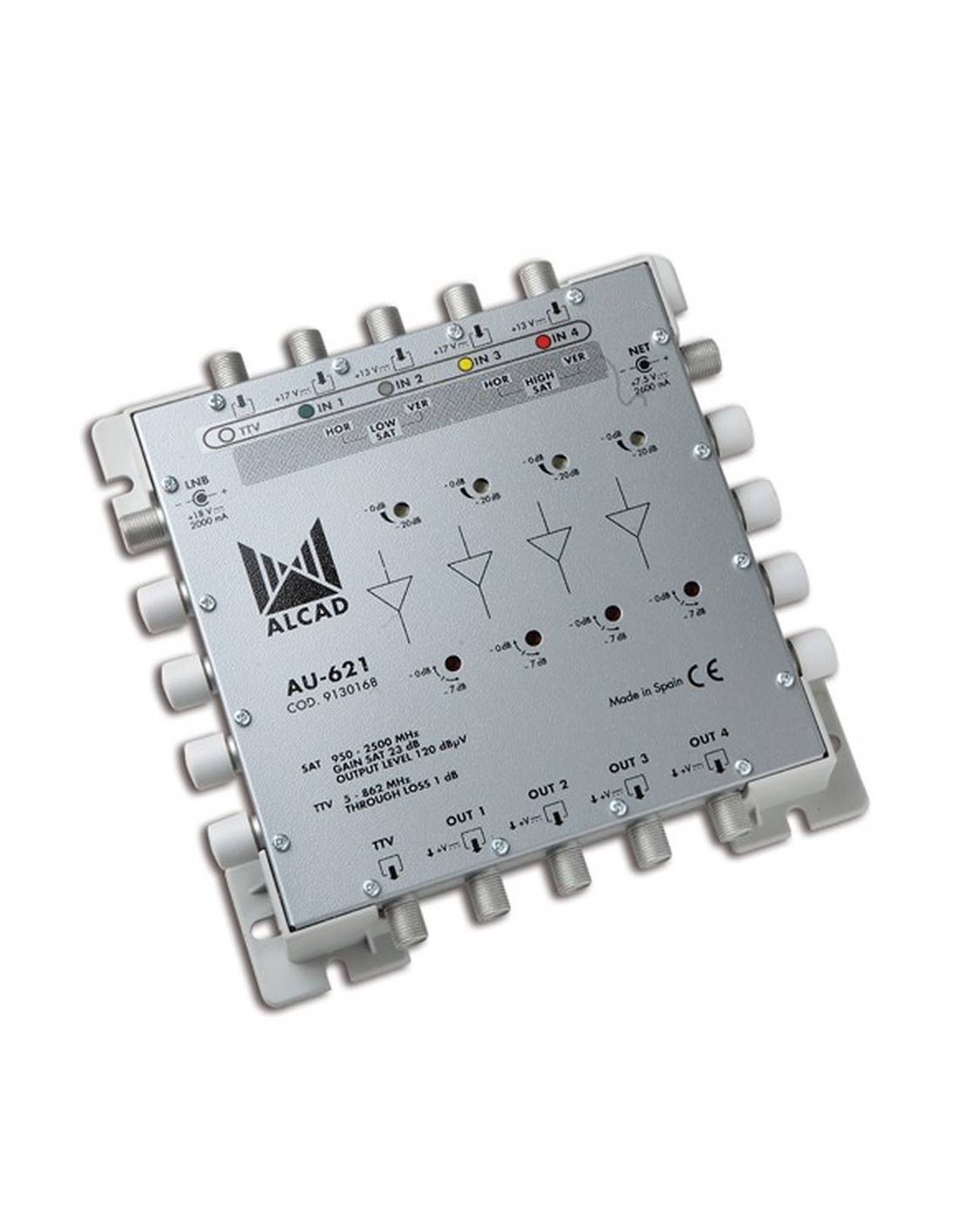

4-pole 25 dB amplifier
€265.84
Tax included
SAT amplifier for 4, 8 and 16 polarities, for cascade installations.
For 16 polarities, 2 stacked 8-polarity amplifiers are installed.
It has a gain regulator and independent equalizer for each polarity.
Requires the FU-513 power supply, from the NET power connector, to power the amplifier and intermediate active multiswitches.
To power the LNBs, use the FU-612 power supply.
APPLICATIONS
Collective terrestrial and satellite TV installations, medium to large in size.
It allows up to 128 TV outlets to be distributed in a single branch, with a single FU-513 amplifier and power supply.
By dividing the installation into branches of 128 sockets and distributing the 4 or 8 polarities and the terrestrial TV to all the branches, more than 2,000 sockets are reached.
Amplifies and equalizes all polarities before the multiswitch cascade.
FEATURES
Return path included from 5 to 65 MHz.
Armored zamak chassis with plastic supports.
Type F connectors.
9.5x2.1 mm jack type power connector for the NET cascade and for the LNBs.
9130168
8425988226082
