Sáez Ortega is a Spanish manufacturer specialised in solutions for irrigation, pumping, water conveyance and agricultural equipment. The group develops pipes, accessories and technical parts for professional installations, with a particularly strong presence in systems for wells, boreholes and submersible pumps.

At Electrochannel, you can find a wide selection of Sáez Ortega uPVC pipes for submersible pumps, available in different series, diameters and resistance levels, as well as adapters, reducers, expanders and complete kits prepared to make assembly of the rising main easier.

Sáez Ortega uPVC pipes for submersible pumps

Sáez Ortega uPVC pipes are designed to form the rising main of submersible pumps installed in wells and boreholes.

uPVC offers a lightweight and resistant alternative to traditional metal pipes, especially in installations where corrosion may become a long-term problem.

Its smooth internal surface favours water flow and helps reduce friction head losses, while its lower weight makes assembly, dismantling and maintenance operations easier.

uPVC pipe for wells and boreholes

uPVC pipes for wells allow water to be conveyed from the submersible pump to the surface using threaded sections specifically designed to withstand the working conditions of the installation.

The choice of the right series mainly depends on the well depth, working pressure, pump weight, pipe diameter and mechanical demands of the installation.

Sáez Ortega offers different series to cover everything from conventional installations to high-depth and high-pressure applications.

Standard uPVC pipe

The Standard Series offers a balanced solution for professional pumping and water extraction installations.

At Electrochannel, this series is available with a working pressure of up to 25 bar and is recommended for installations up to approximately 250 metres deep, always depending on the actual installation conditions.

Its combination of strength, lightness and hydraulic performance makes it a very versatile option for numerous wells and boreholes.

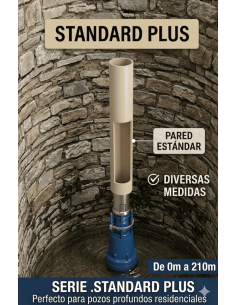

Standard Plus uPVC pipe

The Standard Plus Series is aimed at installations requiring reinforced construction and stable mechanical behaviour.

At Electrochannel, it is offered with a working pressure of up to 21 bar and an indicative depth of up to 210 metres.

This series makes it possible to configure rising mains in different diameters, while maintaining the corrosion resistance and low weight advantages of uPVC.

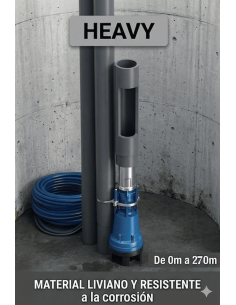

Heavy uPVC pipe

The Heavy Series is designed for more demanding installations and reaches a working pressure of up to 27 bar.

At Electrochannel, it is aimed at wells and boreholes that can reach approximately 270 metres deep, offering a reinforced solution for pumps and columns subject to greater loads.

Its design is intended to combine structural resistance and ease of assembly in professional applications.

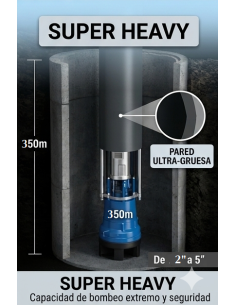

Super Heavy uPVC pipe

The Super Heavy Series represents the most demanding option within the uPVC pipe range available at Electrochannel.

It is designed to work with pressures of up to 35 bar and can be used in installations reaching approximately 350 metres deep, always respecting the technical conditions established for each configuration.

This series incorporates reinforced construction and is aimed at higher-power pumps, deep installations and applications where mechanical resistance is especially important.

uPVC pipes in 3-metre sections

The Sáez Ortega uPVC pipes available at Electrochannel are supplied in 3-metre sections.

This format makes transport, handling and assembly of the column inside the well easier, allowing the required length to be built by successively joining the different sections.

The number of units selected determines the total pipe length: for example, 10 units are equivalent to 30 metres of pipe.

Advantages of uPVC pipe compared with steel

One of the main advantages of uPVC for submersible pumps is its resistance to corrosion and oxidation.

Unlike metal pipe, uPVC does not oxidise when in contact with water, which can help extend the service life of the installation and reduce maintenance tasks.

In addition, its lower weight simplifies the installation and removal of the pump, especially in deep wells where the complete column can reach a considerable length.

uPVC pipe and water hammer

In pumping installations, sudden pressure variations known as water hammer can occur.

The elasticity of the uPVC material allows part of these variations to be absorbed within the expected working conditions, contributing to the good hydraulic behaviour of the column.

Correct sizing of the installation, valves and protection systems remains essential to control this phenomenon.

Threads and connection of uPVC pipe

The pipe sections are joined using threaded systems specifically designed for vertical pumping installations.

These joints allow the column to be assembled and dismantled without welding, making maintenance work and pump extraction easier.

It is important to always carry out assembly following the procedure indicated for each series and using compatible accessories.

Lower adapters for submersible pumps

To correctly connect the pump to the pipe column, specific lower adapters for uPVC can be used.

At Electrochannel, you will find accessories compatible with the different Standard, Standard Plus, Heavy and Super Heavy series.

These elements make it possible to create the transition between the pump outlet and the vertical pipe while respecting the corresponding diameters and threading systems.

Stainless reducers and expanders

When the diameter of the pump outlet does not match the diameter of the column, reducer or expander adapters may be required.

Sáez Ortega offers solutions made from stainless steel to correctly adapt different connection diameters.

A reducer is used when the pipe diameter is larger than the pump outlet, while an expander allows the transition to be made in the opposite situation.

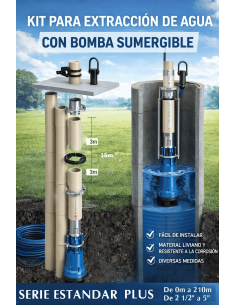

Extraction kits for submersible pumps

At Electrochannel, you can also find complete extraction kits for submersible pumps based on the different uPVC pipe series.

These kits group together the main components needed to configure the installation, helping to avoid compatibility errors between pipes, adapters and safety elements.

Kits are available for the Standard, Standard Plus, Heavy and Super Heavy series, allowing the appropriate solution to be selected according to depth, pressure and pump characteristics.

Which uPVC series should you choose?

The choice between Standard, Standard Plus, Heavy and Super Heavy should be made according to the actual conditions of the installation.

As a general reference, at Electrochannel the series work with the following levels:

• Standard: up to 25 bar and approximately 250 m.
• Standard Plus: up to 21 bar and approximately 210 m.
• Heavy: up to 27 bar and approximately 270 m.
• Super Heavy: up to 35 bar and approximately 350 m.

In addition to depth, the diameter, pump weight, power, actual system pressure and installation conditions must be checked.

uPVC pipe diameters

The pipes are available in different nominal diameters to adapt to the pump flow rate and the hydraulic characteristics of the system.

At Electrochannel, you can find different sizes, from common diameters such as 1 1/4", 1 1/2" and 2" to larger configurations for higher-flow installations.

The choice of diameter directly influences water speed and head losses in the installation.

Sáez Ortega, Spanish manufacturing

Grupo Sáez Ortega is based in Barrax, Albacete, and has been carrying out its industrial activity since 1966.

The company manufactures products for irrigation, hydraulic conduits, metal fabrication, pipes and agricultural equipment, using certified materials and its own production and transport resources.

Why choose uPVC pipe for a submersible pump?

uPVC pipe is especially interesting in installations where the aim is to combine corrosion resistance, lightness, ease of assembly and good hydraulic performance.

Its use can reduce problems associated with the oxidation of metal columns and make future work on the pump easier.

To obtain the best result, it is essential to correctly select the series, diameter and accessories according to the depth and working conditions.
