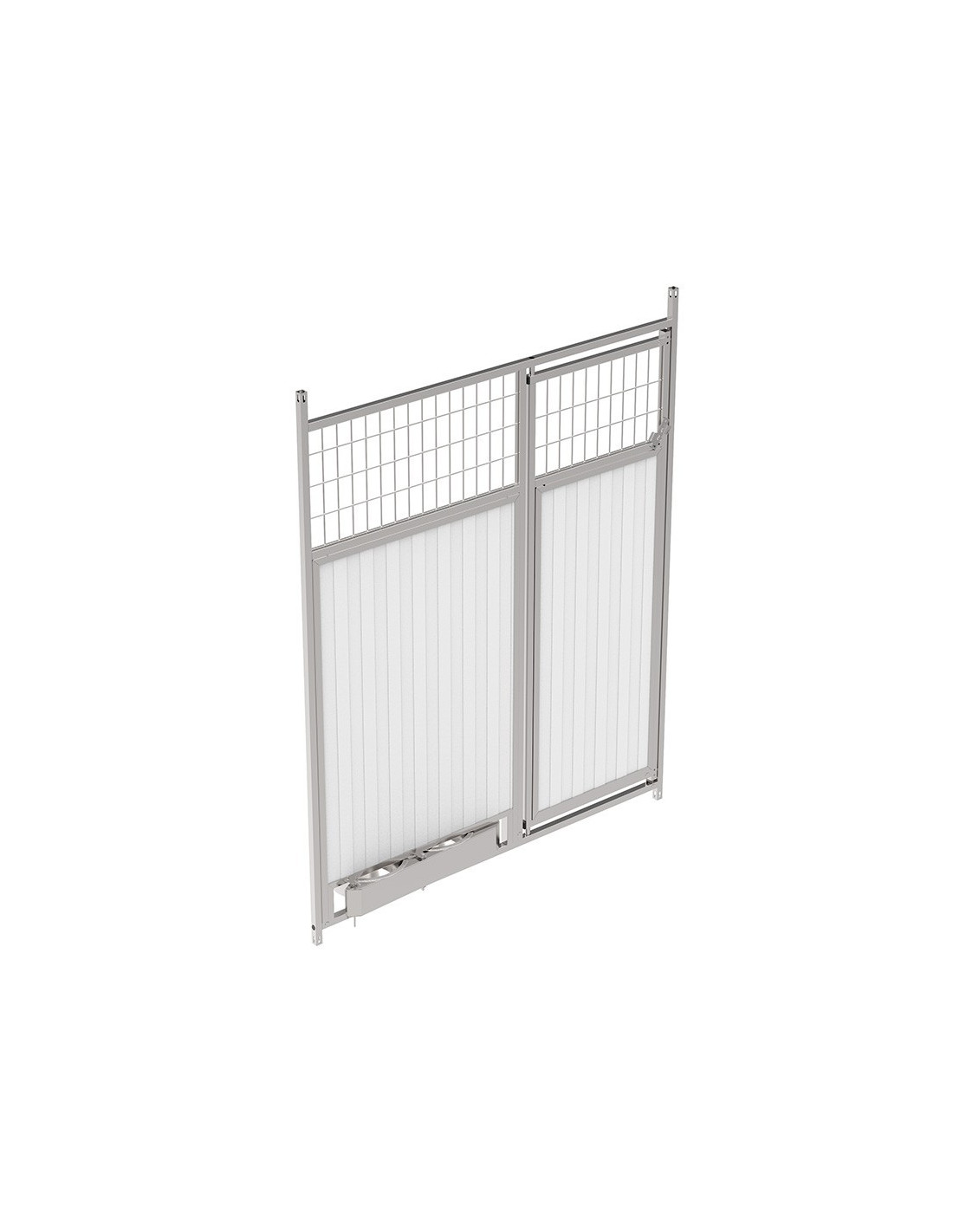

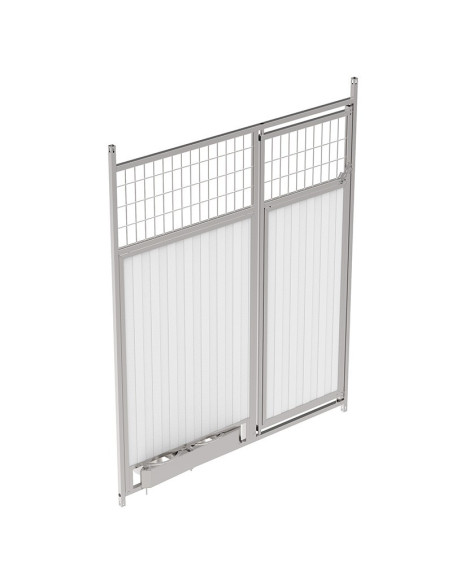

Canine front box with 30 mm sandwich panel, with feeders, front 150 cm

Features "Resid-Dogs"

• Screwed structure made of hot-dip galvanized IPE beam. 30 mm sandwich panel cover (sheet-polyurethane-sheet). thick, with a mobile ridge to facilitate interior ventilation.
• Possibility of double interior roof, to hide the structure.
• 40 mm sandwich panel enclosures (sheet-polyurethane-sheet). thick, with 8 mm polycarbonate windows, with centralized guillotine opening through manual turnstiles (possibility of swing windows with double glass).
• The enclosures are supported on a special profile that makes the water run between the rails and prevents oxidation of the lowest part of it.
• Fronts equipped with access doors measuring 1.50 and 0.90 meters wide by 2 meters high (one on each sprocket).
• Possibility of mounting the enclosures on the outside or inside of the pillars.
• Exits to the exterior of the animals through sash windows that can be opened from the central interior corridor.
• It is not necessary to cast anchor plates in the perimeter foundation footing, since the structure is fixed with metal expansion anchors or chemical anchors.
• The communication between the external and internal box is through a guillotine door, which centralizes its opening collectively or individually from the inside.
