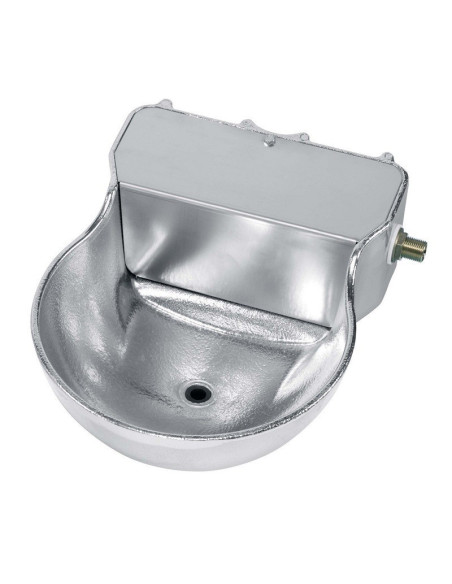

Automatic horse waterer, metal

Description

This automatic aluminum waterer maintains a constant water volume. It connects to a hose and its level can be regulated.

Installation

Its installation is very simple; You just have to fix it to the wall with screws and connect it to a hose. Place the filter between the hose and the valve. Its high-pressure float valve ensures a permanent supply of fresh, clean water.

Recommended height of the drinker:

Recommendations for use:

• Try not to place it under direct sun so that the water does not heat up.
• Keep the waterer clean.
• Periodically check the water level regulation.

Water level regulation

1. Unscrew the hexagonal screw and remove the cover by pressing upwards.
2. Loosen the lock nut (2).
3. Tighten the screw (1) to lower the level or loosen it to raise the level.
4. Retighten the lock nut (2).
5. Check that the float (3) is not fixed (this would indicate that the water level is minimal or zero) and that it is not too loose (this would indicate that the water level is very high and could overflow).
