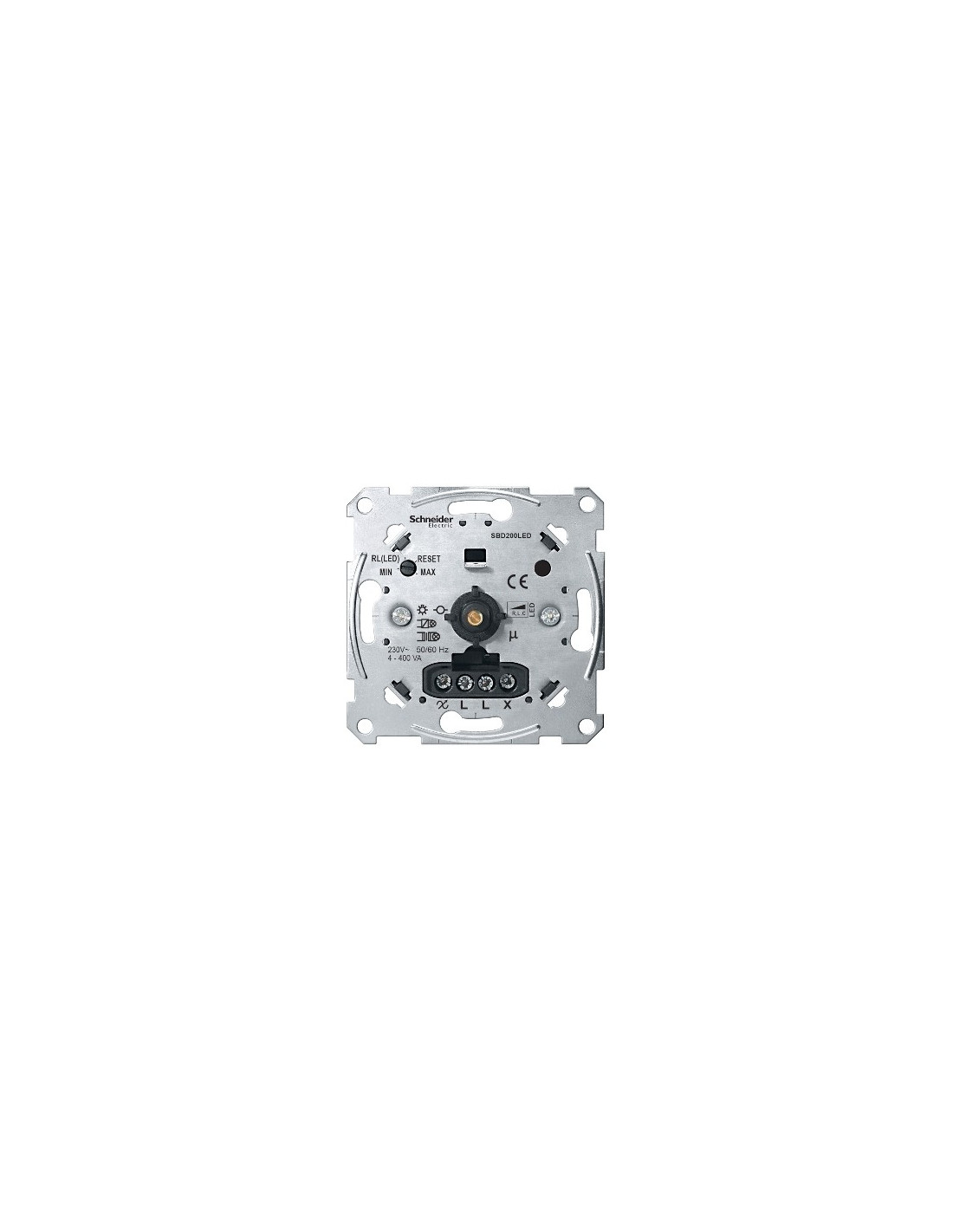

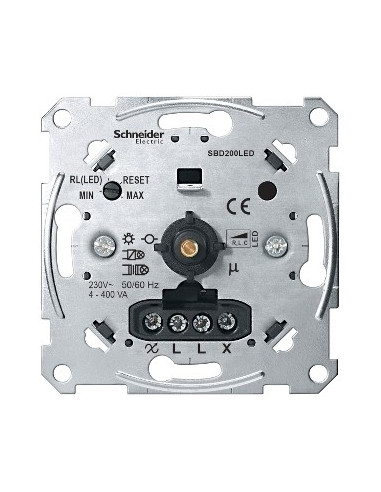

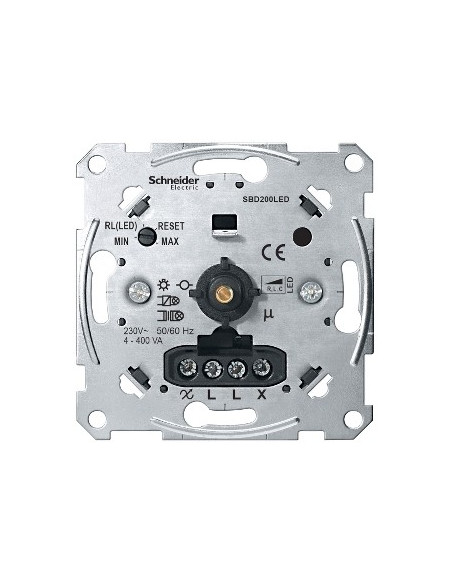

Universal LED dimmer 4-200 VA

Universal rotary dimmer insert for LED lamps. For ohmic, inductive or capacitive loads, such as dimmable LED lamps, incandescent lamps, dimmable winding transformers or electronic transformers. Forward or reverse phase dimming. The universal dimmer automatically detects the connected load. No mixed load should be connected. With bidirectional switch. With fixation using claws and screws. With screw terminals. Rated voltage: 230 V AC, 50/60 Hz Switching capacity: LED lamps: 4-200 VA (RC mode). 4-40 VA (RL-LED mode). Incandescent lamps: 4-400 W. Halogen lamps: 4-400 W (230 V). 4-400 VA (LV with dimmable winding transformer). 4-400 VA (LV with dimmable electronic transformer). Neutral conductor: not required. Terminal connection: screw terminals 2.5 mm² max. Protection: 16 A automatic switch. Properties: Short circuit proof. Overload proof. Smooth ignition. Resistant to overheating. Automatic load detection. Min. Value Settings /max Manual load configuration (RL-LED mode).
