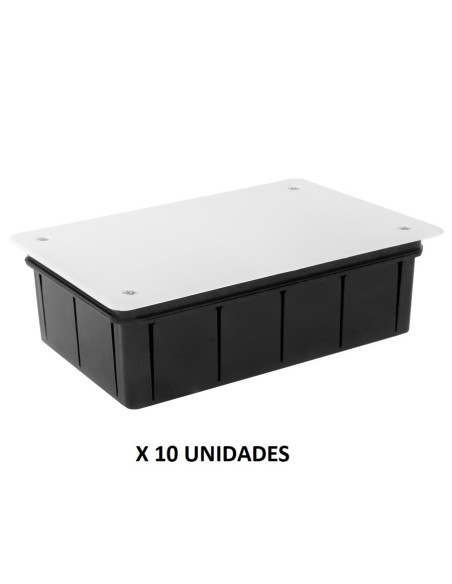

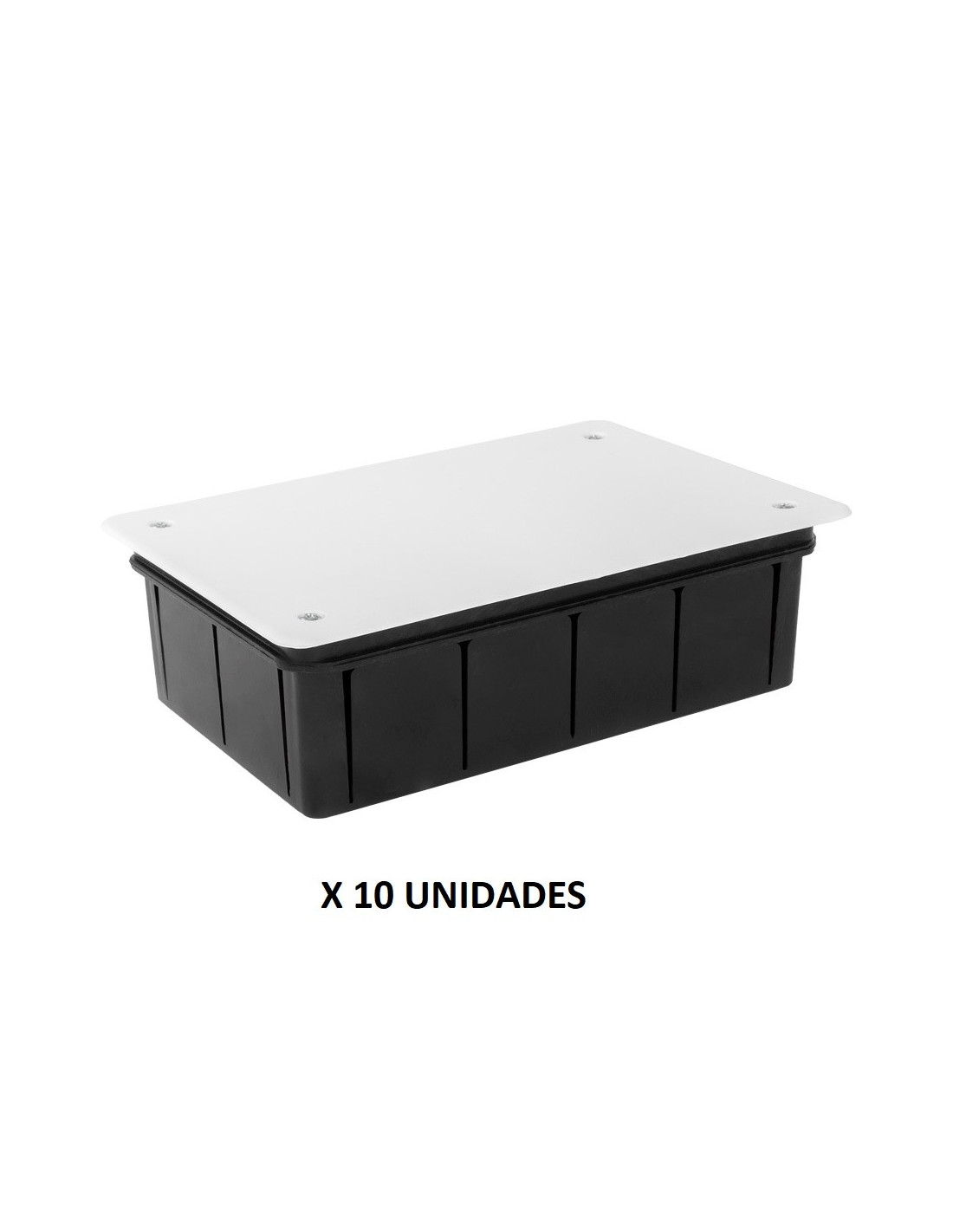

Junction box 160x100x50 mm. Screw cover. 10 units
€11.06
Tax included
Easy opening sides for tube entry. Junction box, cover with screws. Closing system with metal screws. Halogen free box. Made in Spain
SPECIFICATIONS
Connection boxes for embedding in indoor installations.
- Interior measurements (mm) (Length x Width x Height) 160x100x50
- External measurements (mm) (Length x Width x Height) 168x 110x51
- Lid measurements (mm) (Length x Width) 178x120
*Measurements with a margin of ± 2 mm
Boxes supplied with the screws glued to the lid.
TECHNICAL INFORMATION
Resistance to glow wire 650° according to UNE-EN 60695-2-11:2001 regulations.
Boxes made of halogen-free thermoplastic material.
No tickets. Inlet openings can be made during installation. Removable walls.
Installation temperature -5°C to + 60°C.
Enclosures whose voltage does not exceed 1000V a.c. or 1500V d.c.
Boxes manufactured according to UNE 60670-1:2006 regulations (Tests carried out by the Technological Institute of Aragon/ITA).
EC declaration of conformity (Directive 2014/35/EU).
2620CX10
