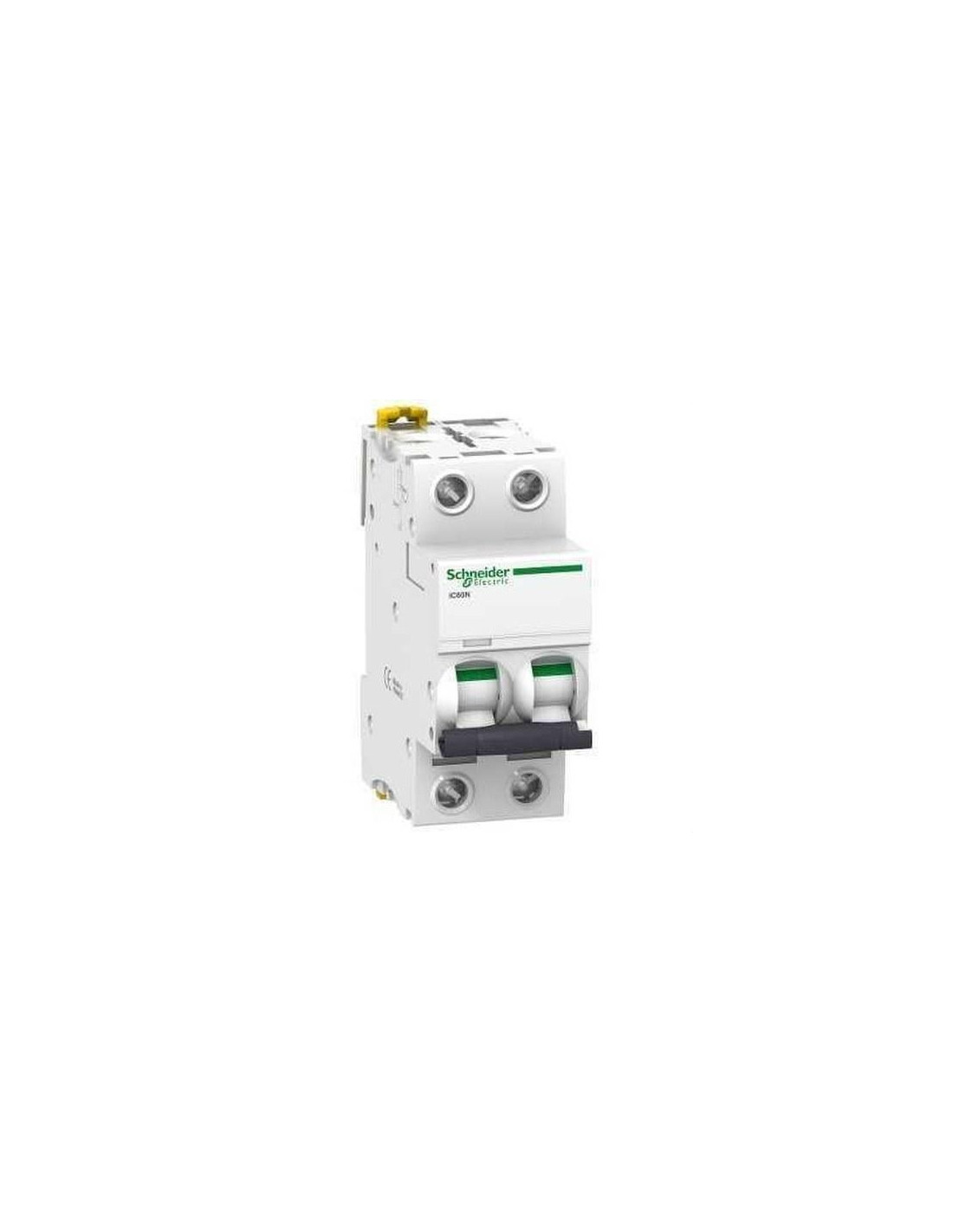

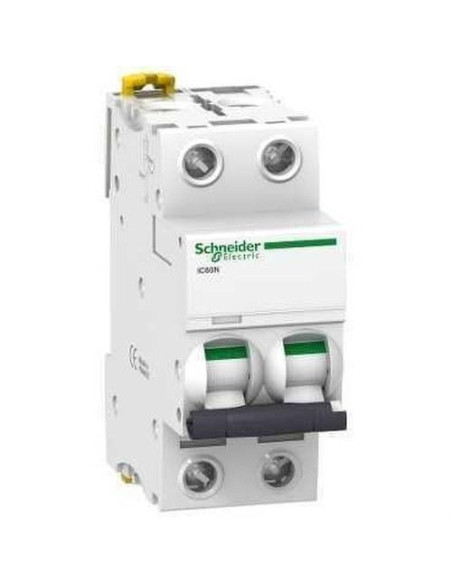

iC60N 2P 50A C-curve magneto-thermal automatic switch
iC60N 2P 50A C-curve magneto-thermal automatic switch
iC60N Acti 9 magneto-thermal automatic switch, 2P, 50A, curve C, IP20, Thermal-magnetic, Suitable for sectioning, Contact position indicator, Control type: Handle, Local signaling: Trip indicator, Mounting mode: Fixed, Mounting bracket: DIN rail, Earth leakage protection: Independent block, 85x36x78.5mm, 0.25kg, White. Breaking capacity: 10 kA Icu in accordance with EN 60947-2, 380...415 V AC 50/60 Hz, 10 kA Icu in accordance with IEC 60947-2, 380...415 V AC 50/60 Hz, 20 kA Icu in accordance with IEC 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn in accordance with EN 60898-1, 400 V AC 50/60 Hz, 6000 A Icn in accordance with IEC 60898 -1, 400 V AC 50/60 Hz, 36 kA Icu in accordance with EN 60947-2, 12...133 V AC 50/60 Hz, 6 kA Icu in accordance with EN 60947-2, 440 V AC 50/ 60 Hz, 10 kA Icu according to EN 60947-2, 72...125 V DC, 20 kA Icu according to EN 60947-2, 220...240 V AC 50/60 Hz, 6 kA Icu according with IEC 60947-2, 440 V AC 50/60 Hz, 36 kA Icu in accordance with IEC 60947-2, 12...133 V AC 50/60 Hz, 10 kA Icu in accordance with IEC 60947-2, 72. ..125 V DC, category of use: category A in accordance with IEC 60947-2, category A in accordance with EN 60947-2, suitable for disconnection: yes in accordance with IEC 60947-2, yes in accordance with EN 60947-2 2, yes according to IEC 60898-1, yes according to EN 60898-1, standards: IEC 60947-2, EN 60898-1, IEC 60898-1, EN 60947-2.
