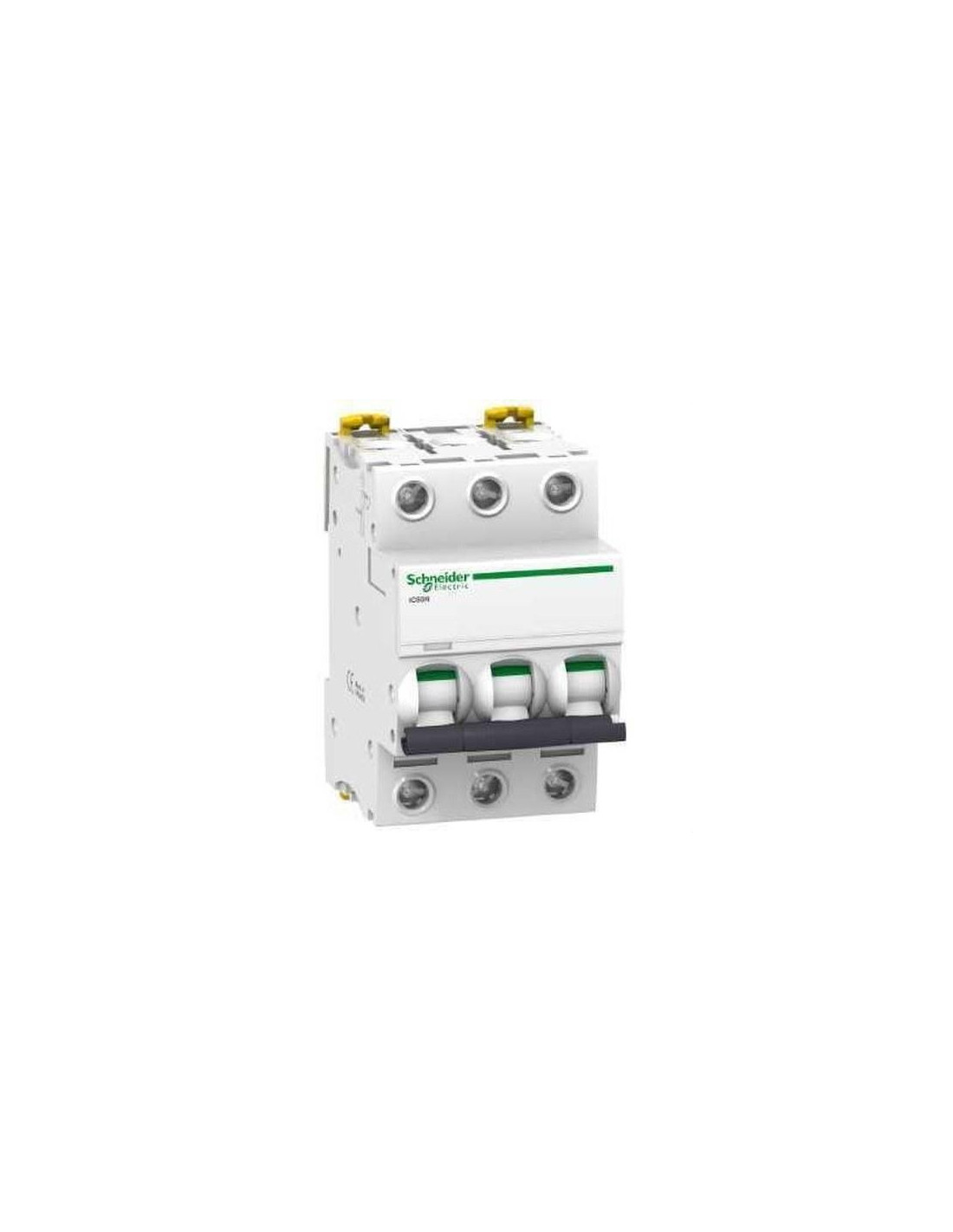

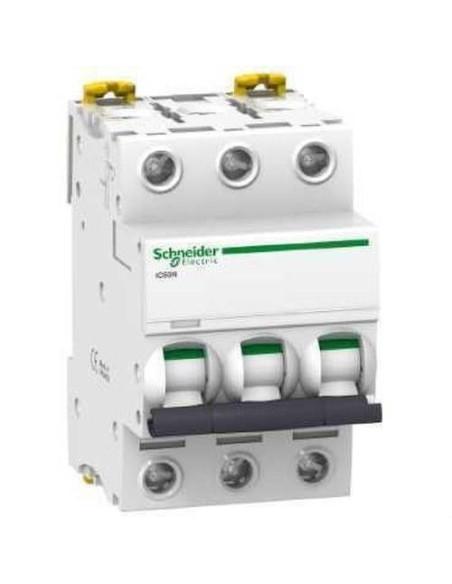

iC60N 3P 40A C-curve magneto-thermal automatic switch
iC60N 3P 40A C-curve magneto-thermal automatic switch
iC60N Acti 9 magneto-thermal automatic switch, 3P, 40A, curve C, IP20, Thermal-magnetic, Suitable for sectioning, Contact position indicator, Control type: Handle, Local signaling: Trip indicator, Mounting mode: Fixed, Mounting bracket: DIN rail, Earth leakage protection: Independent block, 85x54x78.5mm, 0.375kg, White. Breaking capacity: 36 kA Icu in accordance with IEC 60947-2, 12...133 V AC 50/60 Hz, 20 kA Icu in accordance with IEC 60947-2, 220...240 V AC 50/60 Hz, 6 kA Icu in accordance with IEC 60947-2, 440 V AC 50/60 Hz, 10 kA Icu in accordance with EN 60947-2, 380...415 V AC 50/60 Hz, 10 kA Icu in accordance with IEC 60947 -2, 380...415 V AC 50/60 Hz, 10 kA Icu in accordance with IEC 60947-2, 125...180 V DC, 6000 A Icn in accordance with EN 60898-1, 400 V AC 50/ 60 Hz, 20 kA Icu in accordance with EN 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu in accordance with EN 60947-2, 125...180 V DC, 36 kA Icu in accordance with EN 60947-2, 12...133 V AC 50/60 Hz, 6000 A Icn in accordance with IEC 60898-1, 400 V AC 50/60 Hz, 6 kA Icu in accordance with EN 60947-2, 440 V AC 50/60 Hz, category of use: category A in accordance with EN 60947-2, category A in accordance with IEC 60947-2, suitable for disconnection: yes in accordance with IEC 60898-1, yes in accordance with EN 60898- 1, yes according to EN 60947-2, yes according to IEC 60947-2, standards: EN 60898-1, IEC 60947-2, IEC 60898-1, EN 60947-2.
