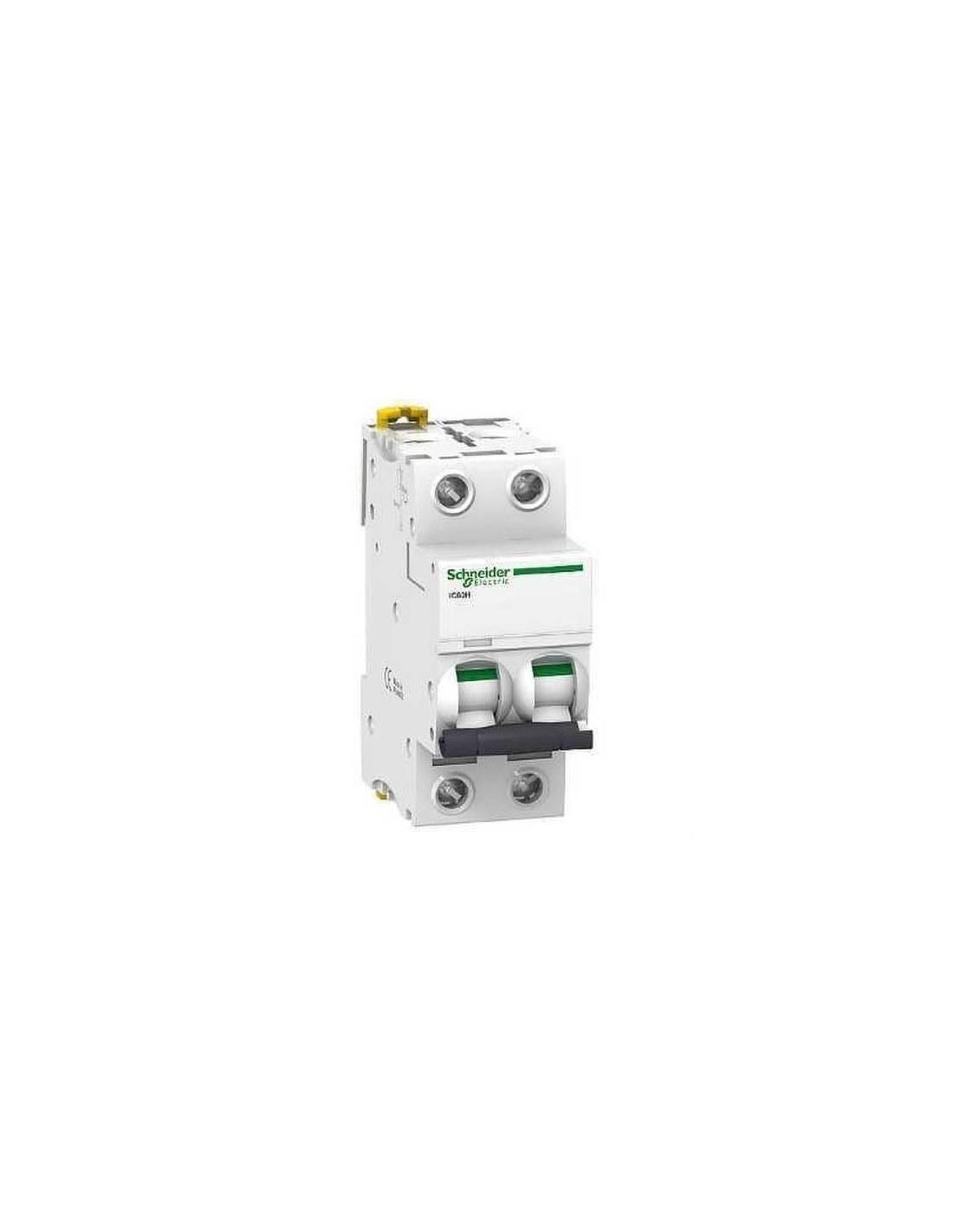

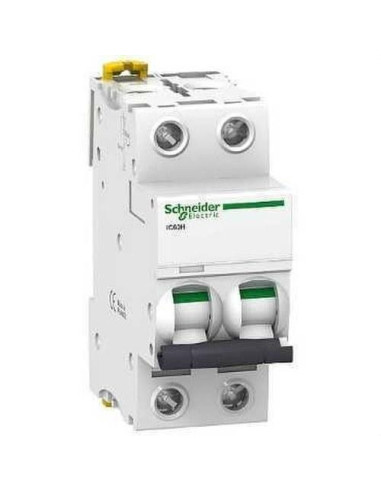

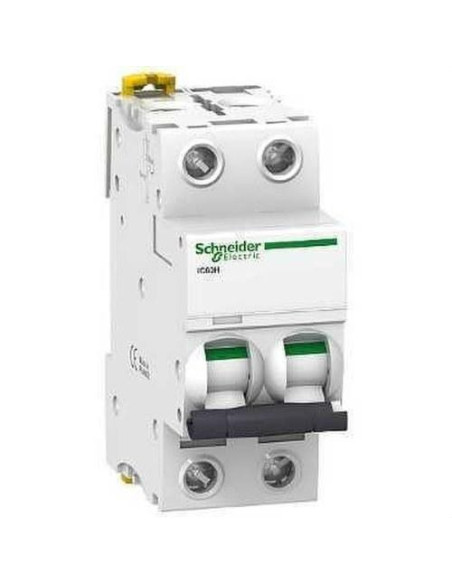

iC60H 2P 20A C-curve magneto-thermal automatic switch

iC60H Acti 9 magneto-thermal automatic switch, 2P, 20A, curve C, IP20, thermal-magnetic, suitable for sectioning, contact position indicator, handle control, trip indicator, mounting fixed, DIN rail support, without protection against ground leakage, measures 85x18x78.5mm, weighs 0.215kg and is white. Breaking capacity: 10000 A Icn in accordance with IEC 60898-1, 230 V AC 50/60 Hz, 15 kA Icu in accordance with IEC 60947-2, 220...240 V AC 50/60 Hz, 15 kA Icu according to EN 60947-2, 220...240 V AC 50/60 Hz, 20 kA Icu according to IEC 60947-2, 12...60 V DC, 30 kA Icu according to EN 60947-2, 100 ...133 V AC 50/60 Hz, 10000 A Icn in accordance with EN 60898-1, 230 V AC 50/60 Hz, 42 kA Icu in accordance with IEC 60947-2, 12...60 V AC 50/ 60 Hz, 15 kA Icu in accordance with EN 60947-2, 72 V DC, 20 kA Icu in accordance with EN 60947-2, 12...60 V DC, 30 kA Icu in accordance with IEC 60947-2, 100. ..133 V AC 50/60 Hz, 42 kA Icu in accordance with EN 60947-2, 12...60 V AC 50/60 Hz, 15 kA Icu in accordance with IEC 60947-2, 72 V DC, category use A in accordance with EN 60947-2, category A in accordance with IEC 60947-2, suitable for sectionalization in accordance with EN 60898-1, in accordance with EN 60947-2, in accordance with IEC 60947-2 and in accordance with IEC 60898-1. Standards: IEC 60898-1, EN 60898-1, EN 60947-2, IEC 60947-2.
