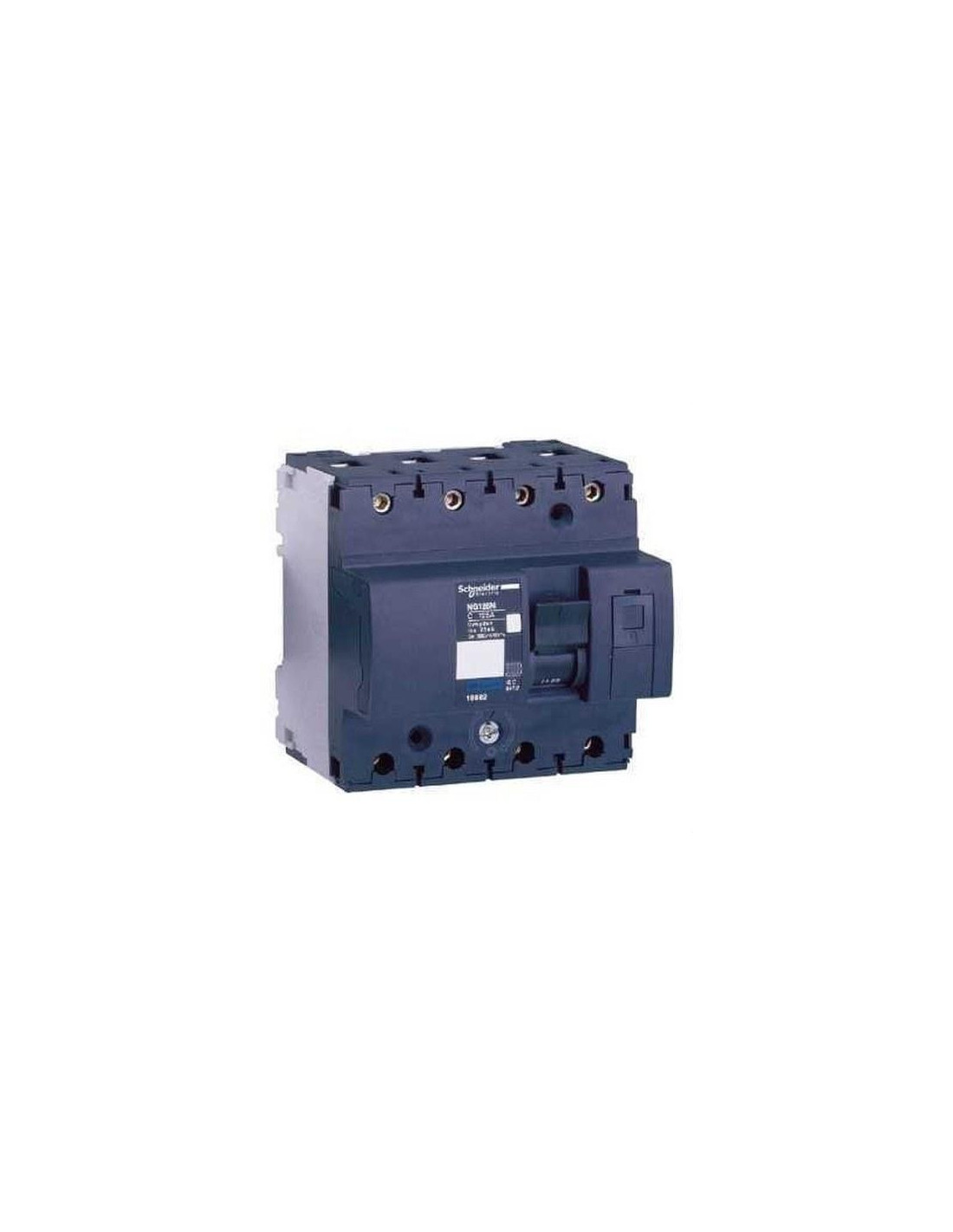

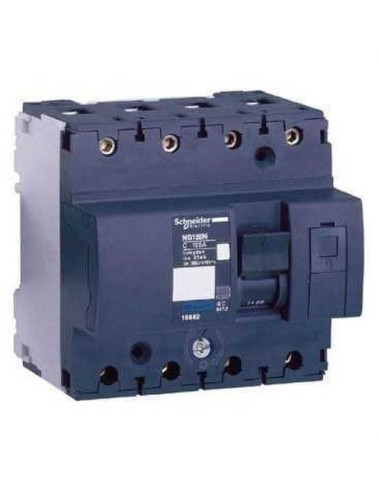

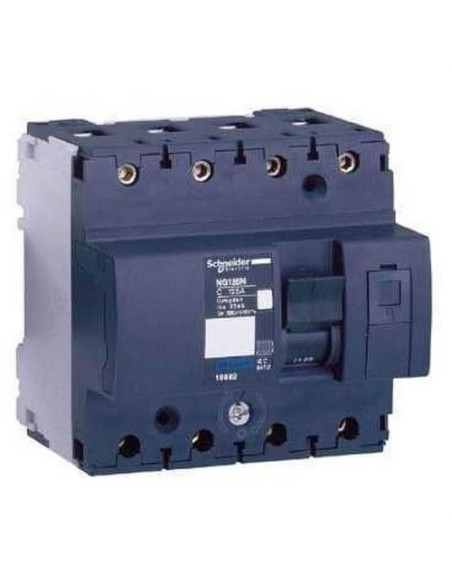

Magnetothermal switch NG125N 4P 40A curve-C

Acti 9 miniature thermal-magnetic circuit breaker, NG125N, 4P, 40A, curve C, Thermal-magnetic, Nominal current (In) 40 A at 40 °C, 0.96kg. Breaking capacity: 50 kA Icu in accordance with EN/IEC 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu in accordance with EN/IEC 60947-2, 500 V AC 50/60 Hz, 20 kA Icu according to EN/IEC 60947-2, 440 V AC 50/60 Hz, 20 kA Icu according to EN/IEC 60947-2, <= 500 V DC, 25 kA Icu according to EN/IEC 60947-2, 380...415 V AC 50/60 Hz. Benefits: With the advantages of all the ease of a modular installation, the NG125 circuit breaker combines the performance and robustness required in the most demanding industrial installations. Applications: Protection in all industrial and tertiary buildings: Entry protection in modular enclosures. Projections in power distribution panels.
