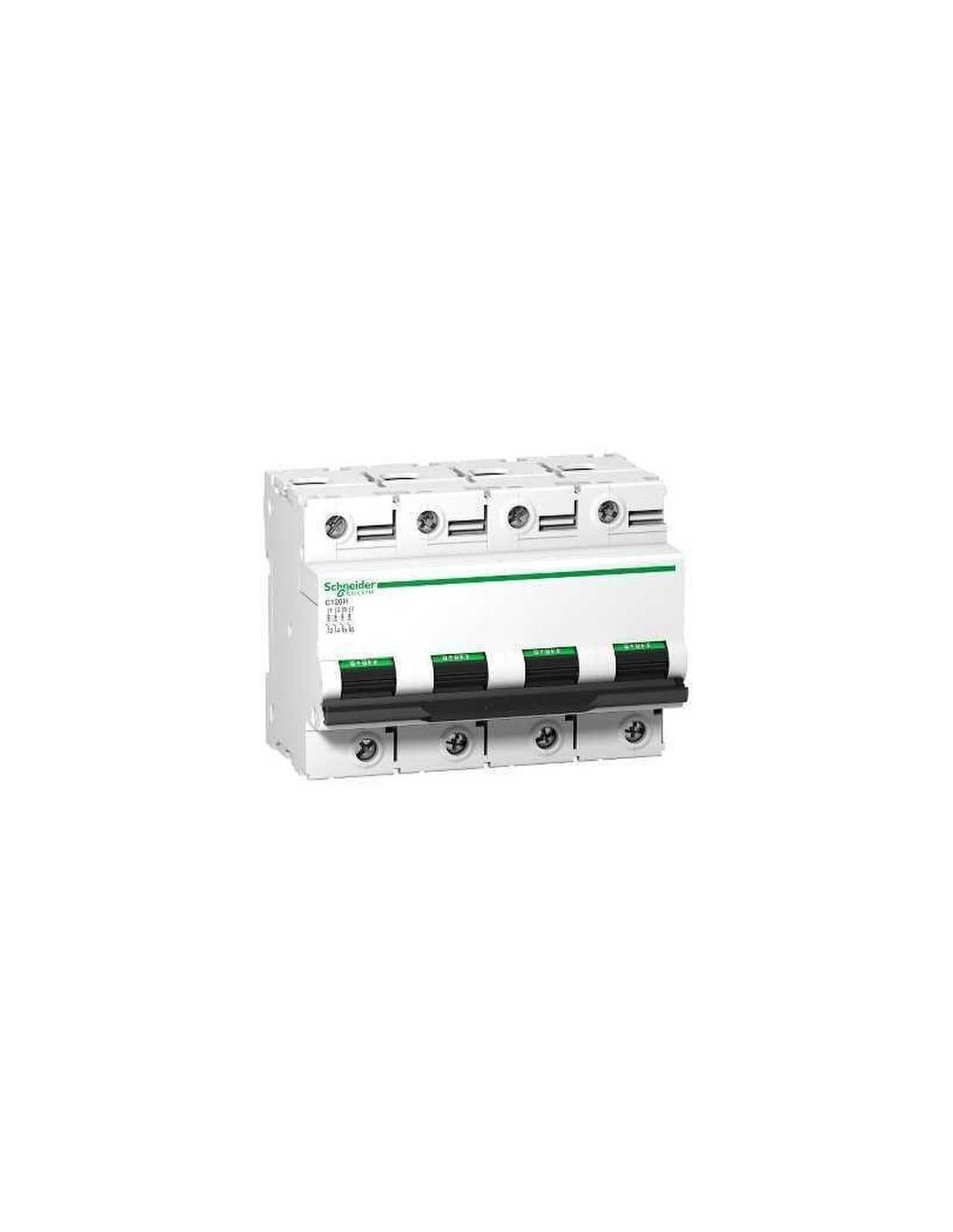

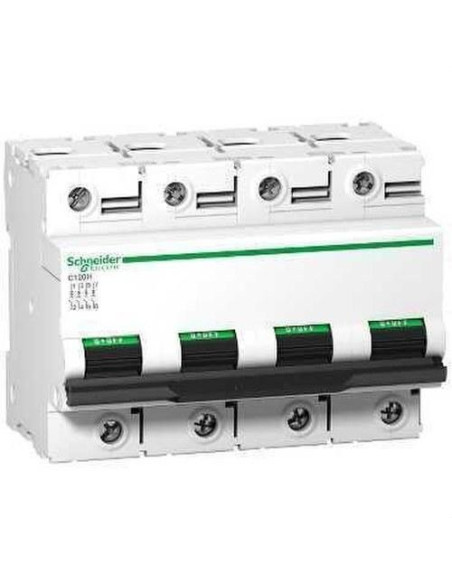

C120H 4P 80A C-curve magneto-thermal automatic switch

Acti 9 C120H magneto-thermal automatic switch, 4P, 80A, curve C, 50/60Hz, IP20, Class III, suitable for sectioning, thermal-magnetic, contact position indicator, handle control, on/off indication off, 35mm symmetrical DIN rail mounting, adjustable clip mounting, comb-type busbar distribution block compatibility, independent block ground leakage protection, measures 81x108x73mm, weighs 0.82kg and white in color. Breaking capacity: 15000 A Icn in accordance with EN/IEC 60898-1, 230...400 V AC 50/60 Hz, 15 kA Icu in accordance with EN/IEC 60947-2, 380...415 V AC 50 /60 Hz, 15 kA Icu according to EN/IEC 60947-2, <= 500 V DC, 10 kA Icu according to EN/IEC 60947-2, 440 V AC 50/60 Hz, 30 kA Icu according with EN/IEC 60947-2, 220...240 V AC 50/60 Hz. Benefits: Quality without limits. The C120 circuit breaker, which comes directly from the C60, is known in more than 100 countries for its quality and the breadth of its range, which makes it an indispensable component for the development of low voltage installations with complete peace of mind. Applications: Protection of electrical circuits in all types of industrial buildings and the tertiary sector.
