Hook with safety latch teams with any joint for a lifting assembly. It is characterized by its overwhelming robustness when lifting, pulling, tensioning and tying in all directions.

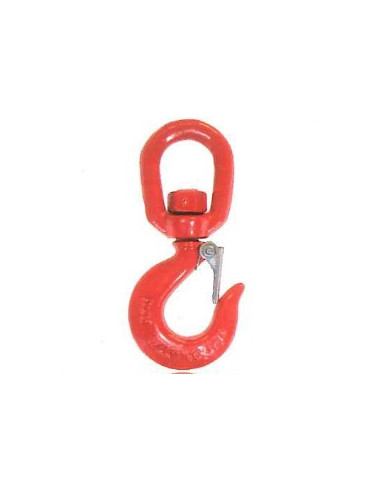

Swivel hook with latch
Features of the hook with safety latch
This swivel hook can be used on the bottom of the hoist with a union and has a swivel latch
In case of overload, it will not bend gradually and will not break suddenly
Due to its robustness, it supports load in all directions.
| REFERENCE | FOR CHAIN (MM) | CMU 4:01 (T) | LONG. USEFUL (MM) | LONG. INT. RING (MM) | HOOK OPENING (MM) |
|---|---|---|---|---|---|
| TH22-1 | -- | 1.25 | 116 | 27 | 24 |
| TH22-1.5 | -- | 1.60 | 140 | 33 | 26 |
| TH22-2 | -- | 2.50 | 163 | 42 | 27 |
| TH22-3 | -- | 3.20 | 172 | 42 | 32 |
| TH22-4 | -- | 5.40 | 213 | 50 | 40 |
| TH22-7 | -- | 8.00 | 266 | 65 | 51 |
| TH22-11 | -- | 11.50 | 310 | 68 | 58 |
| TH22-16 | -- | 16.00 | 352 | 84 | 66 |
| TH22-22 | -- | 22.00 | 434 | 107 | 87 |
