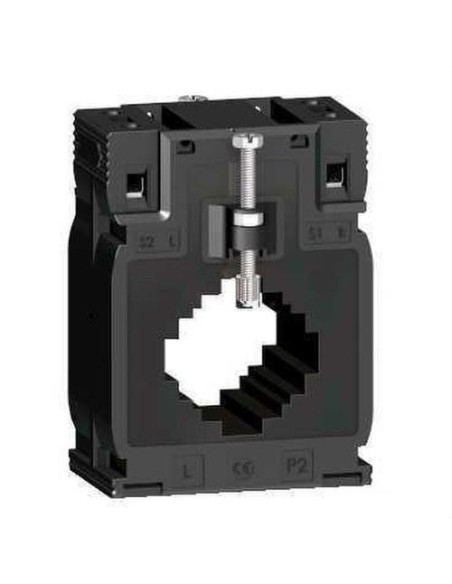

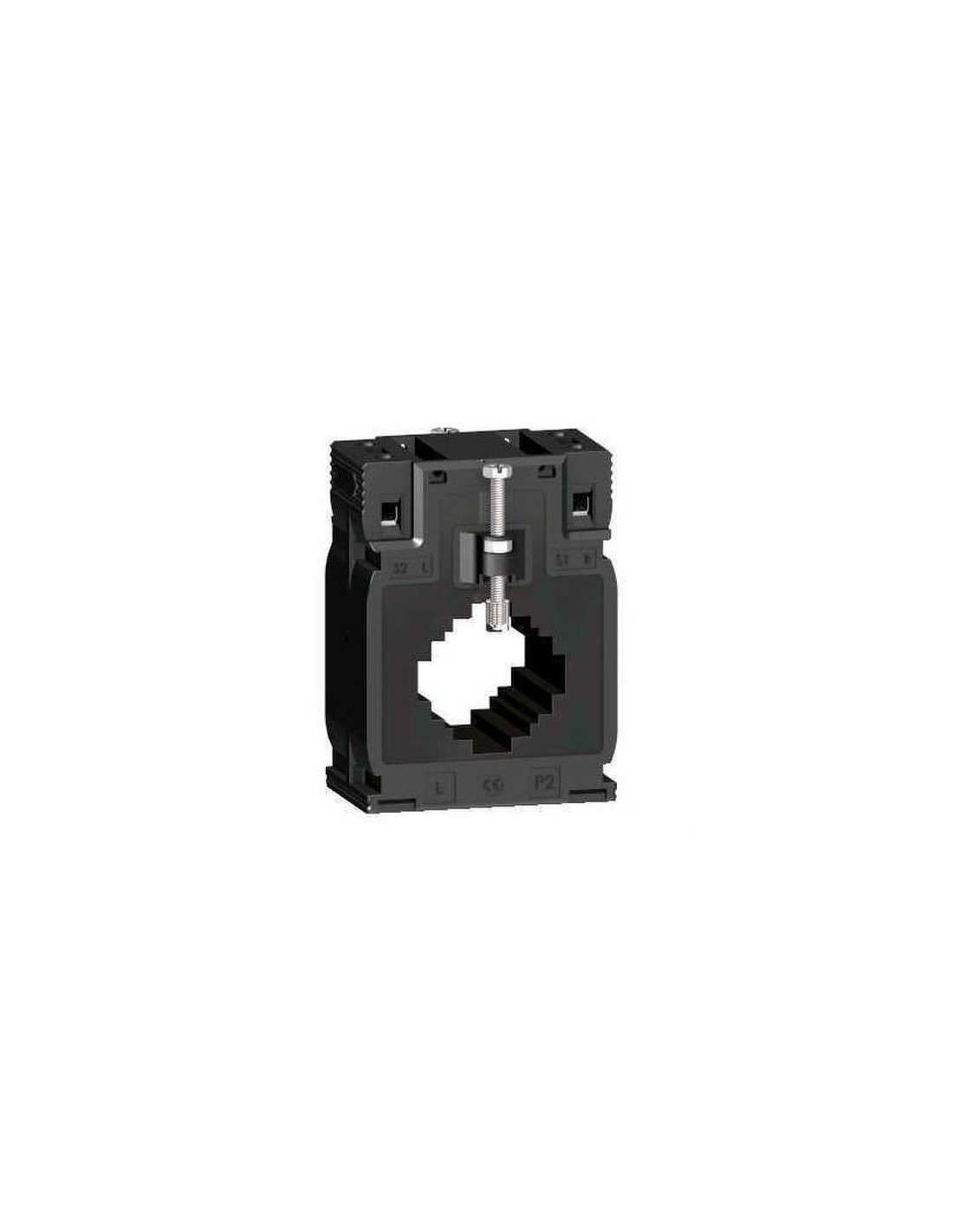

TI800/5 intensity transformer 10x40/20x32/25x25mm

DIN 800/5 tropicalized intensity transfer for 10x40 20x32 25x25 bars. Range: PowerLogic - product name: TI - type of product or component: current transformer - secondary current: 5 A - accuracy class: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA - [ In] rated current: 800 A. Benefits: The PowerLogic range of TI current transformers is a complete range suitable for: all current measurements from 40A to 6000A, DIN rail, flush-mounted and bar installation.... Applications : TI current transformers provide a current in the secondary (0-5A) proportional to the current measured in the primary. This means that they can be used in combination with metering devices (switchboard instrumentation, kilowatt-hour meters, power monitoring units.)
