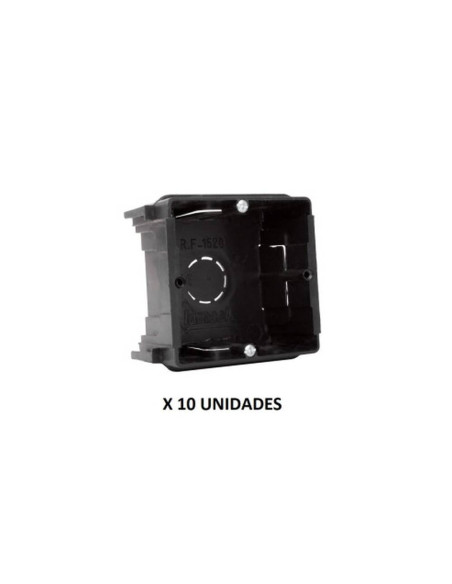

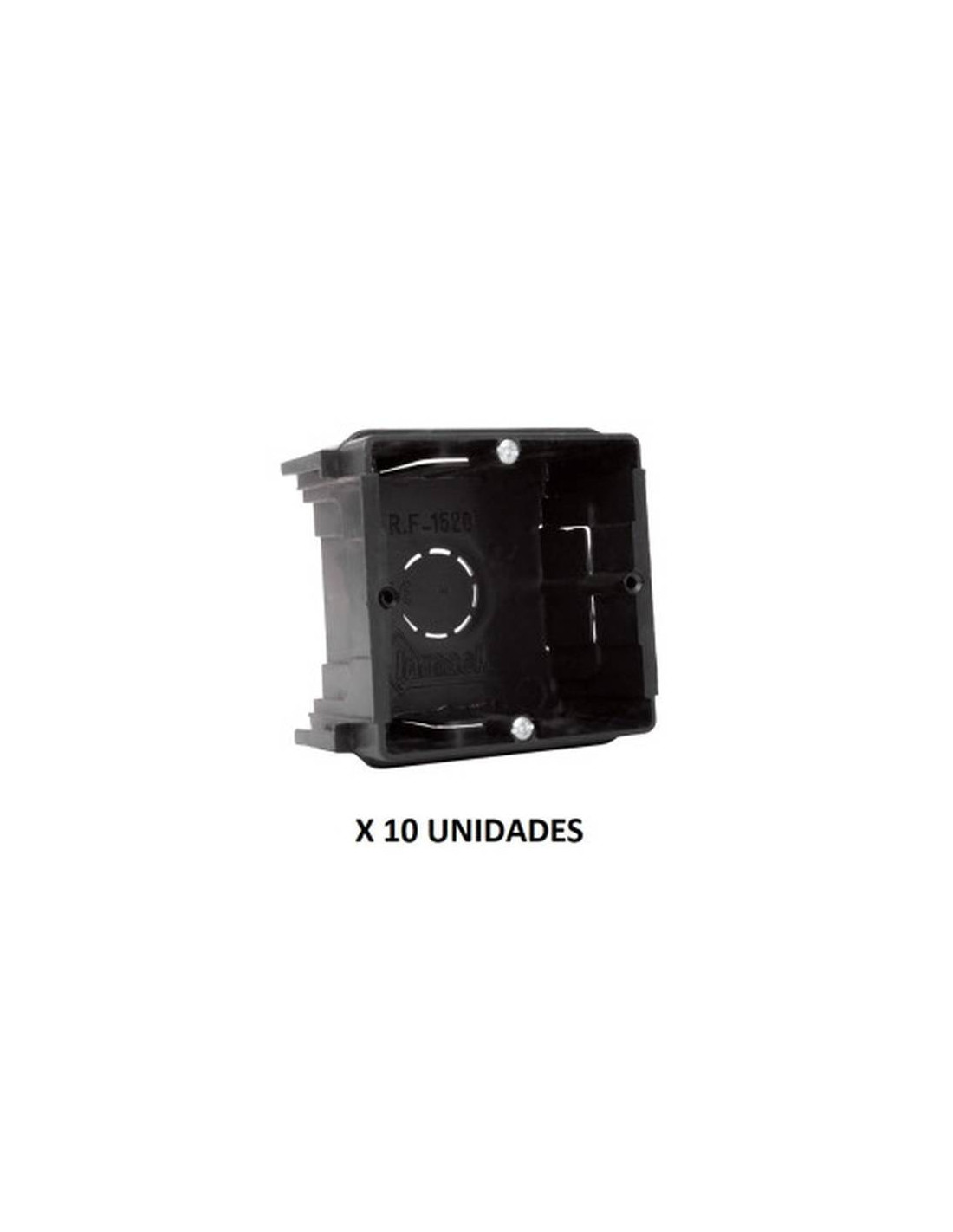

Reinforced square universal linkable mechanism box (4-position screw) 65x65x42 mm with 2 screws. 10 units
€1.90
Tax included
Universal linkable square mechanism box 1 element. Four position screw. Easy opening sides for tube entry. Halogen-free box
SPECIFICATIONS
Connection boxes for embedding in indoor installations.
- Interior measurements (mm) (Length x Width x Height) 60x64x41
- External measurements (mm) (Length x Width x Height) 76x73x42
*Measurements with a margin of ± 1 mm
Boxes supplied with two screws.
TECHNICAL INFORMATION
Resistance to glow wire 650° according to UNE-EN 60695-2-11:2001 regulations.
Boxes made of halogen-free thermoplastic material.
No tickets. Inlet openings can be made during installation. Removable walls.
Installation temperature -5°C to + 60°C.
Enclosures whose voltage does not exceed 1000V a.c. or 1500V d.c.
Boxes manufactured according to UNE 60670-1:2006 regulations (Tests carried out by the Technological Institute of Aragon/ITA).
EC declaration of conformity (Directive 2014/35/EU).
1520X10
