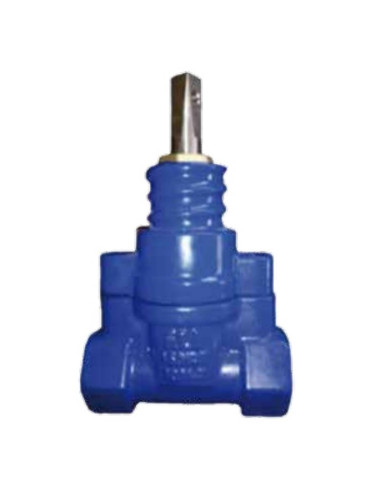

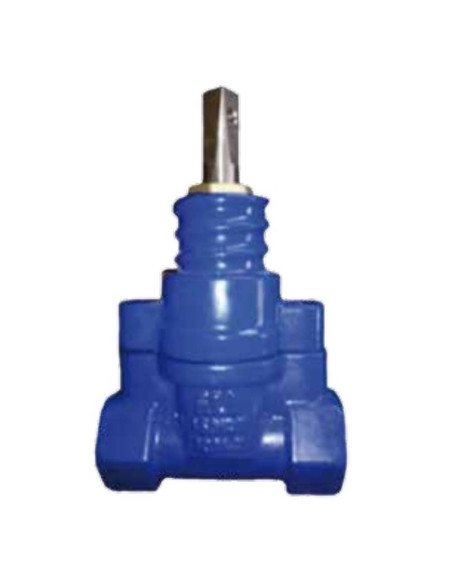

Gate valve for PN16 ductile iron connection

This PN16 inlet gate valve has a ductile cast iron that improves its resistance to impacts and corrosion.

Characteristics of the PN16 Ductile Cast Iron Service Gate Valve


It offers high resistance to impacts or water hammer to prolong its useful life.
It is compatible with other PN16 pipes.
Designed for the treatment of drinking water or other common fluids.
Facilitates scheduled maintenance.

APPLICATIONS

• The CONDOR inlet valve is a compact valve with excellent durability.
• The EPDM-coated gate guarantees excellent conservation.
• The inlet valve has a triple sealing system to prevent possible leaks.
• Stainless steel shaft prevents corrosion.

GENERAL CHARACTERISTICS

• Designed according to the ES UNE EN-1074-2 standard
• Covering of the gate and rubber seals in EPDM complying with the ES UNE EN-681-1 standard
• AISI 316 Stainless Steel Spindle
• Clocking in a clockwise direction, possibility of counterclockwise closure on request.
• Non-retention zones

COATING

• Body and lid: epoxy polyamide coating (average thickness 250μ RAL5017 or similar).

WORKING CONDITIONS

• Inlet valve for drinking water and neutral liquids at a maximum of 70ºC
