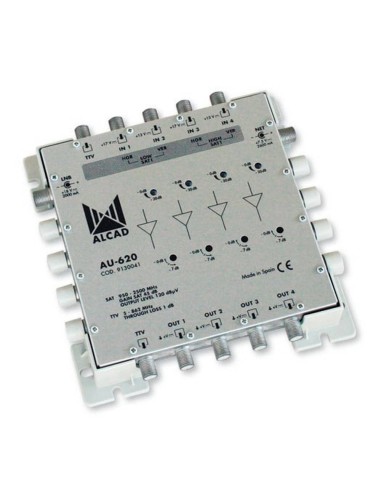

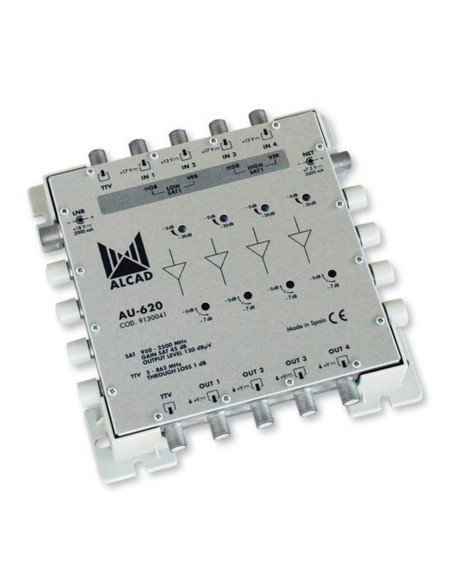

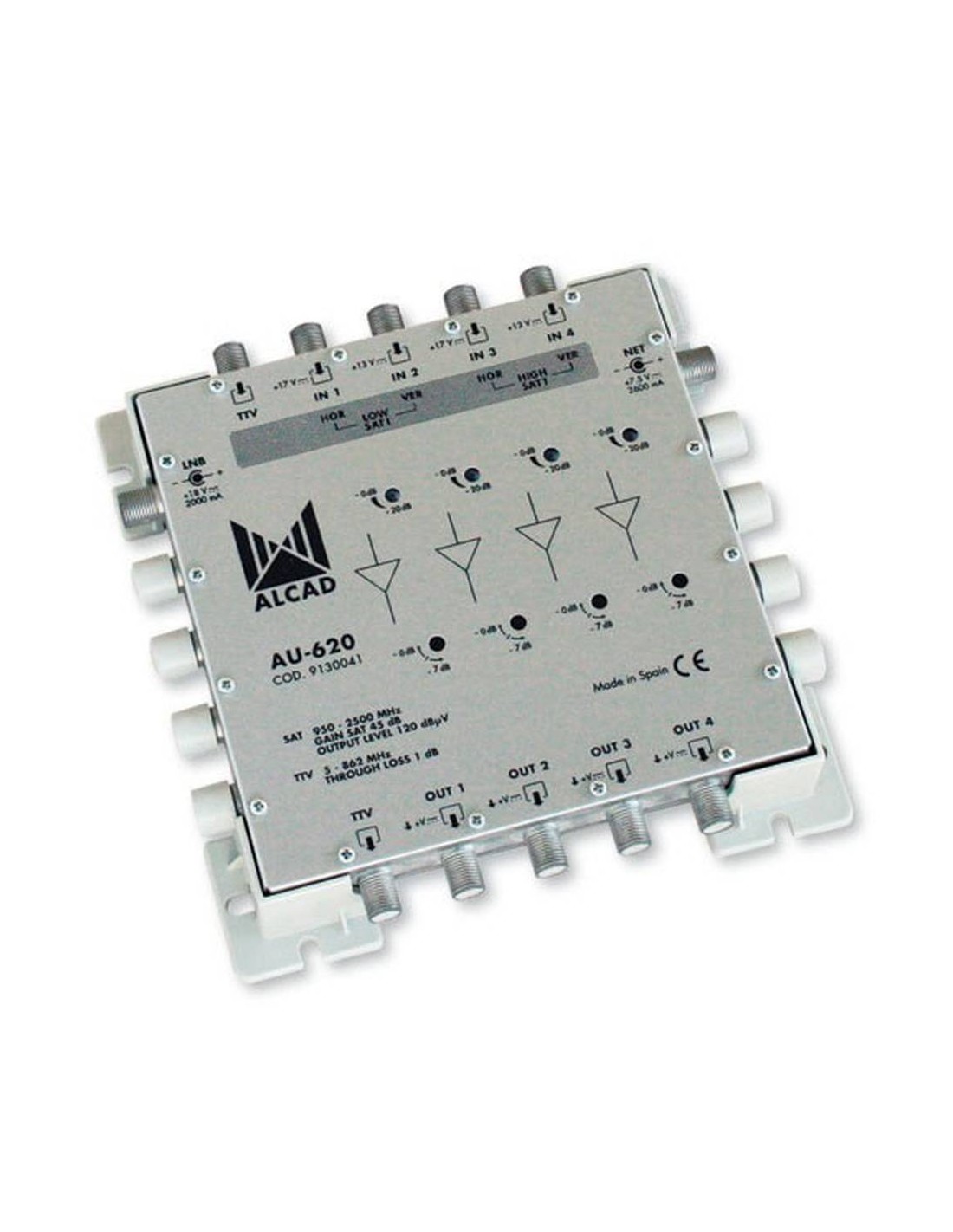

Multiswitch amplifier 4 pole
€279.45
Tax included
SAT amplifier for 4, 8 and 16 polarities, for cascade installations.
For 16 polarities, 2 stacked 8-polarity amplifiers are installed.
It has a gain regulator and independent equalizer for each polarity.
Requires the FU-513 power supply, from the NET power connector, to power the amplifier and intermediate active multiswitches.
To power the LNBs, the FU-612 power supply is used.
APPLICATIONS
Collective terrestrial and satellite TV installations, medium to large in size.
Allows you to distribute up to 128 TV outlets in a single branch, with a single FU-513 amplifier and power supply.
Dividing the installation into branches of 128 sockets and distributing the 4 or 8 polarities and the terrestrial TV to all the branches, more than 2,000 sockets are reached.
Amplifies and equalizes all polarities before the multiswitch cascade.
FEATURES
Return path included from 5 to 65 MHz.
Armored zamak chassis with plastic supports.
Type F connectors.
Two 9.5x2.1 mm jack-type power connectors for the NET cascade, and for the LNBs.
9130041
8425988202086
