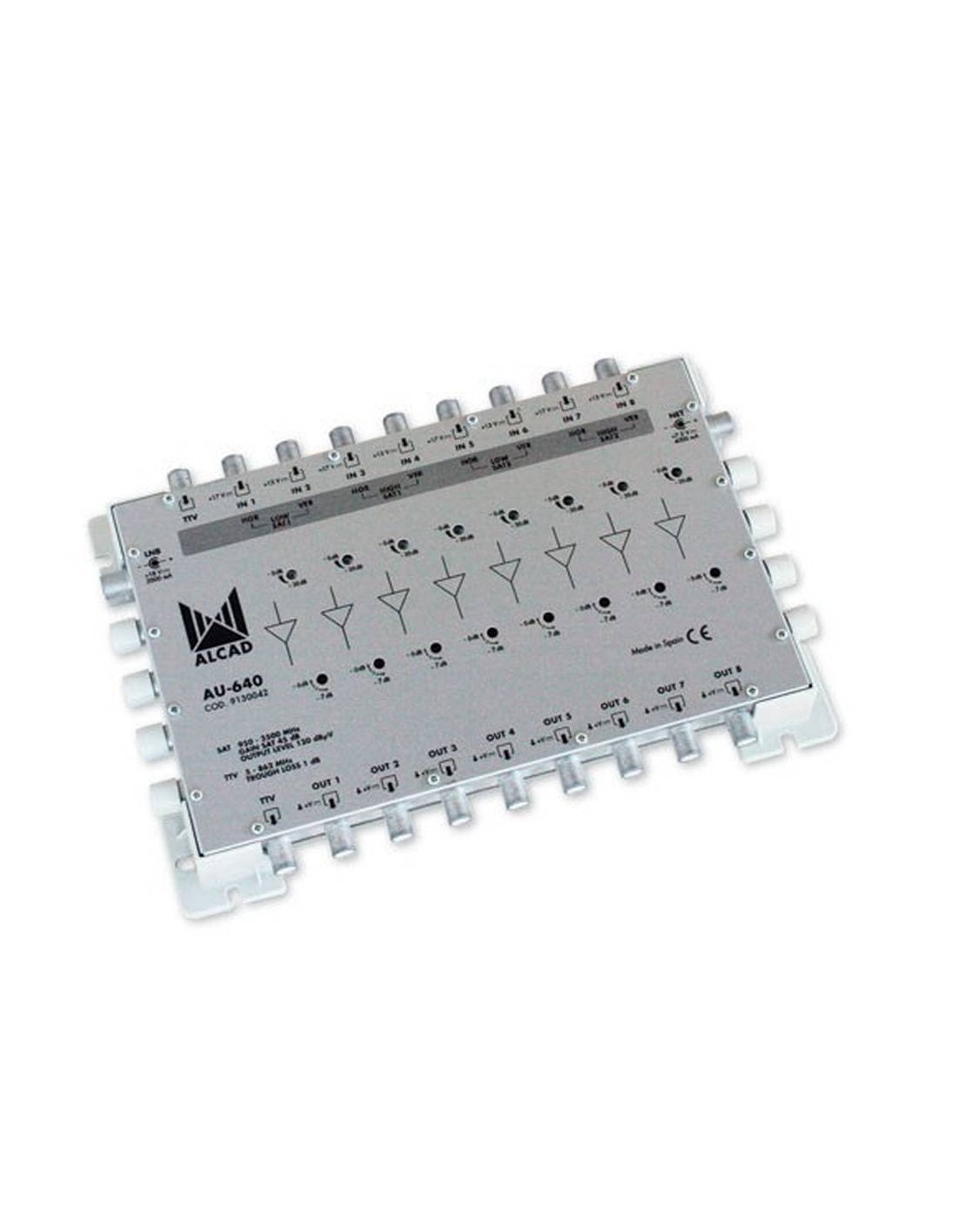

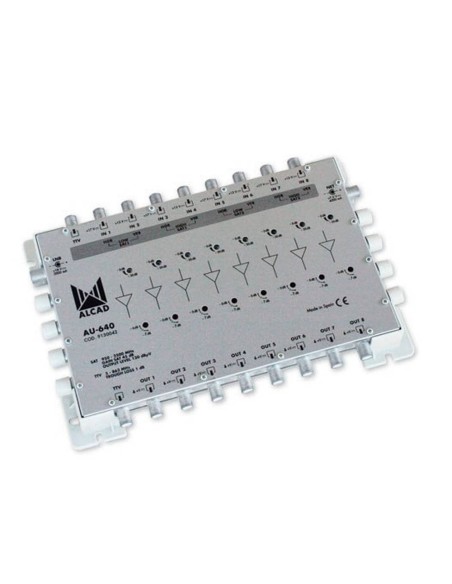

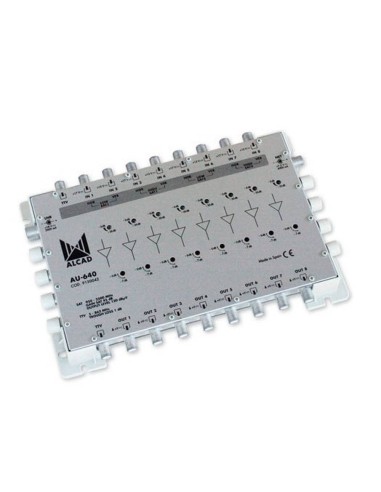

Multiswitch amplifier 8 pole
€433.24
Tax included
It allows you to distribute up to 128 TV outlets in a single branch, with a single amplifier and FU-513 power supply.
Dividing the installation into branches of 128 sockets and distributing the 4 or 8 polarities and the terrestrial TV to all the branches, more than 2,000 sockets are reached.
Amplifies and equalizes all polarities before multiswitch cascade.
Collective terrestrial and satellite TV installations, medium to large in size.
DESCRIPTION
SAT amplifier for 4, 8 and 16 polarities, for cascade installations.
For 16 polarities, 2 stacked 8-polarity amplifiers are installed.
It has an independent gain regulator and equalizer for each polarity.
Requires the FU-513 power supply, from the NET power connector, to power the amplifier and intermediate active multiswitches.
To power the LNBs, the FU-612 power supply is used
CHARACTERISTICS
Return path included from 5 to 65 MHz.
Armored zamak chassis with plastic supports.
Type F connectors.
Two 9.5x2.1 mm jack-type power connectors for the NET cascade, and for the LNB.
9130042
8425988202093
