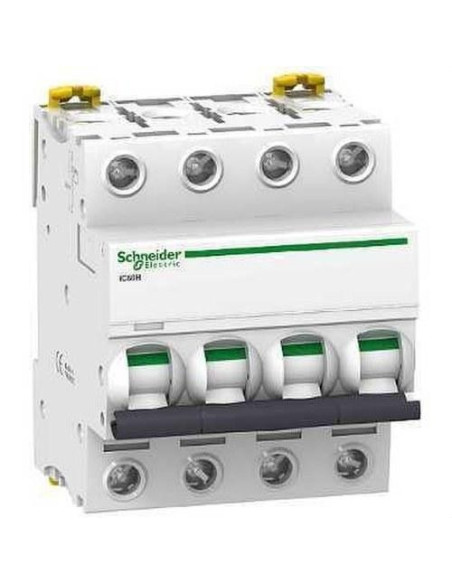

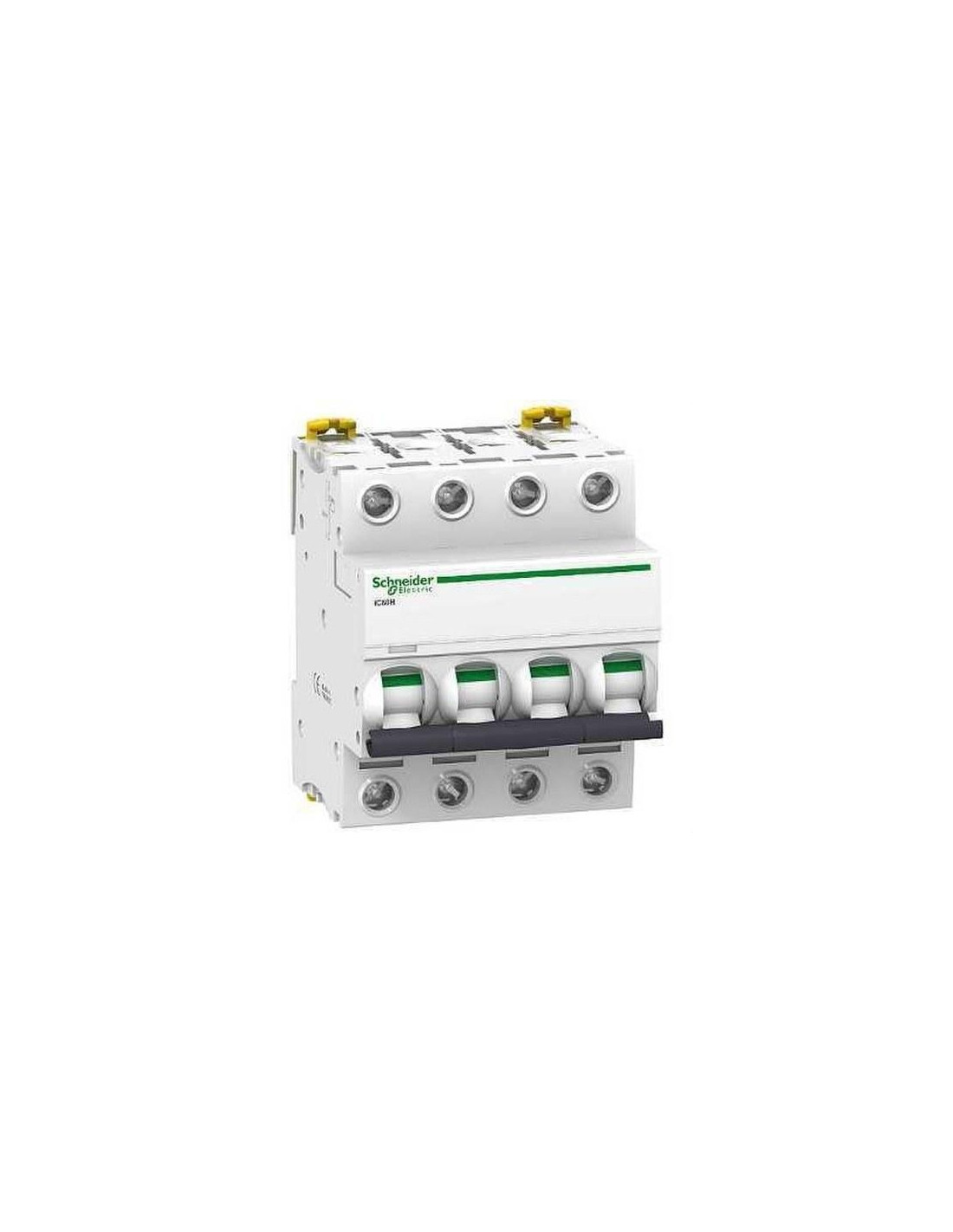

iC60H 4P 50A C-curve magneto-thermal automatic switch

iC60H 4P 50A C-curve magneto-thermal automatic switch

€595.10
Tax included

iC60H 4P 50A C-curve magneto-thermal automatic switch



iC60H Acti 9 magneto-thermal automatic switch, 4P, 50A, curve C, IP20, thermal-magnetic, suitable for sectioning, contact position indicator, handle control, trip indicator, fixed mounting, rail support DIN, protection against earth leakage with independent block, measures 85x72x78.5mm, weighs 0.5kg and is white. Breaking capacity: 15 kA Icu in accordance with EN 60947-2, 380...415 V AC 50/60 Hz, 15 kA Icu in accordance with EN 60947-2, 125...180 V DC, 10000 A Icn according to IEC 60898-1, 400 V AC 50/60 Hz, 42 kA Icu according to IEC 60947-2, 12...133 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 440 V AC 50/60 Hz, 15 kA Icu according to IEC 60947-2, 125...180 V DC, 30 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, 42 kA Icu according to EN 60947-2, 12...133 V AC 50/60 Hz, 10000 A Icn according to EN 60898-1, 400 V AC 50/60 Hz, 30 kA Icu according to EN 60947- 2, 220...240 V AC 50/60 Hz, 15 kA Icu according to IEC 60947-2, 380...415 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 440 V AC 50/60 Hz, utilization category A in accordance with EN 60947-2 and in accordance with IEC 60947-2, suitable for disconnection in accordance with EN 60947-2, in accordance with IEC 60947-2, in accordance with EN 60898 -1 and in accordance with IEC 60898-1, standards: IEC 60947-2, IEC 60898-1, EN 60898-1, EN 60947-2.

A9F89450
3606480095269
