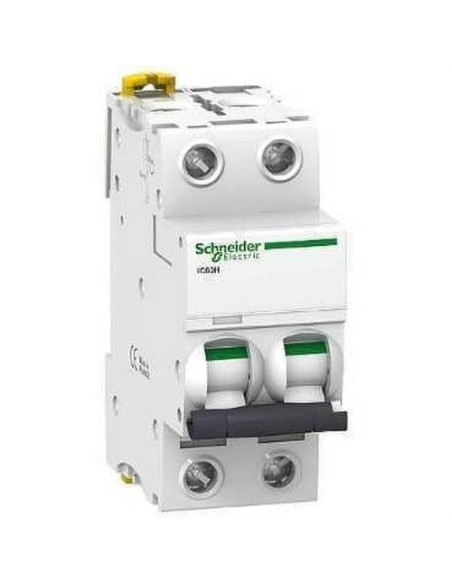

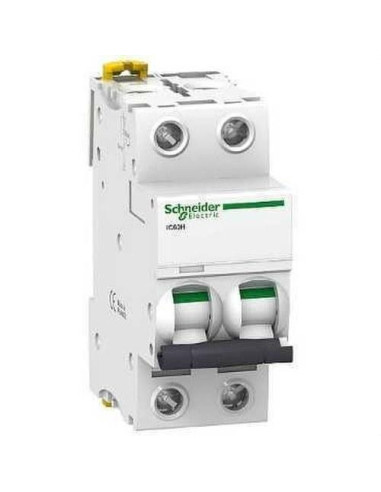

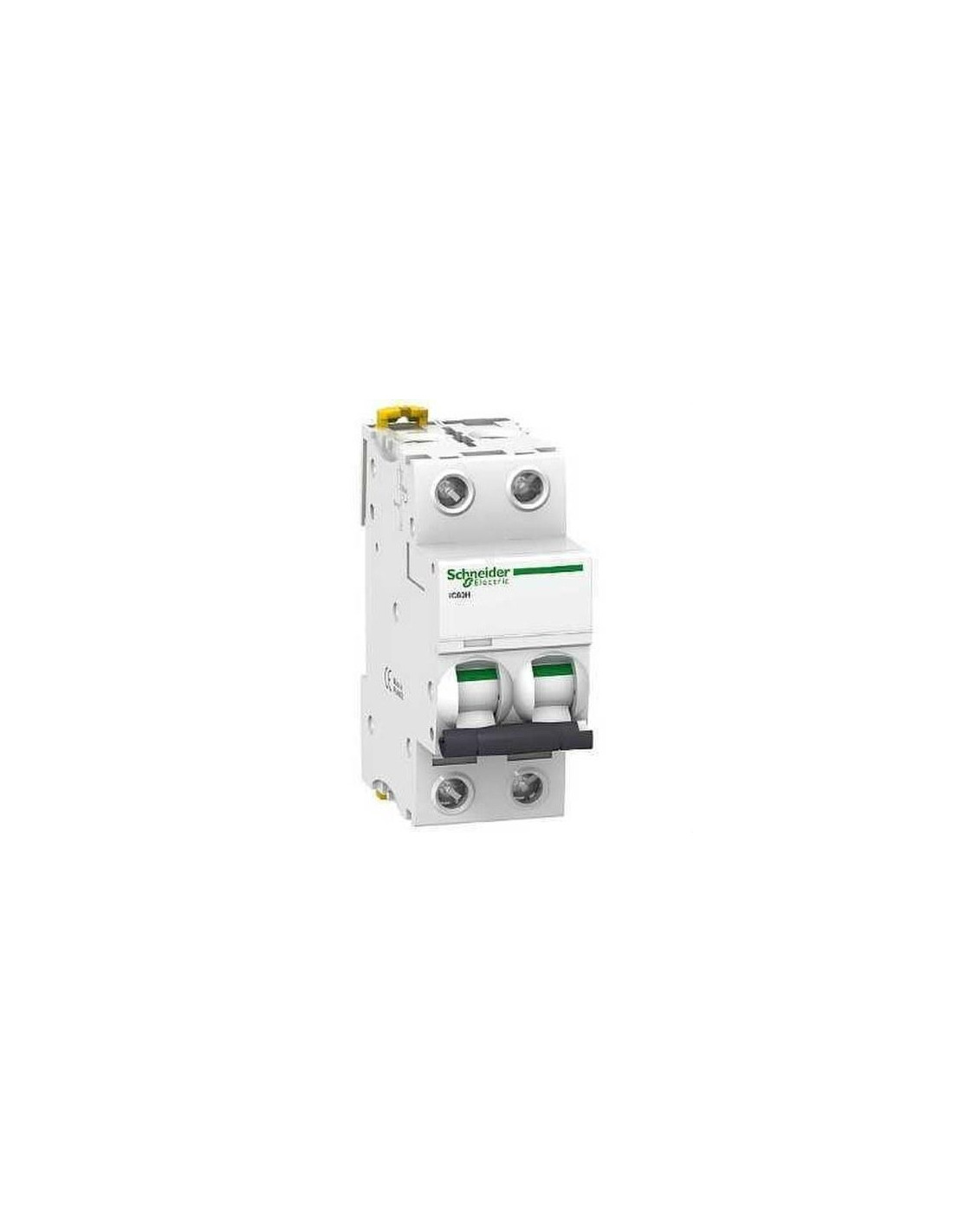

iC60H 2P 40A C-curve magneto-thermal automatic switch

iC60H Acti 9 magneto-thermal automatic switch, 2P, 40A, curve C, IP20, thermal-magnetic, suitable for sectioning, contact position indicator, handle control, trip indicator, fixed mounting, rail support DIN, protection against earth leakage with independent block, measures 85x36x78.5mm, weighs 0.25kg and is white. Breaking capacity: 70 kA Icu in accordance with IEC 60947-2, 220...240 V AC 50/60 Hz, 20 kA Icu in accordance with EN 60947-2, 12...60 V DC, 70 kA Icu according to EN 60947-2, 12...60 V AC 50/60 Hz, 15 kA Icu according to IEC 60947-2, 72 V DC, 10000 A Icn according to EN 60898-1, 230 V AC 50/ 60 Hz, 10000 A Icn according to IEC 60898-1, 230 V AC 50/60 Hz, 20 kA Icu according to IEC 60947-2, 12...60 V DC, 70 kA Icu according to EN 60947- 2, 220...240 V AC 50/60 Hz, 15 kA Icu according to EN 60947-2, 72 V DC, 70 kA Icu according to EN 60947-2, 100...133 V AC 50/60 Hz, 70 kA Icu according to IEC 60947-2, 12...60 V AC 50/60 Hz, 70 kA Icu according to IEC 60947-2, 100...133 V AC 50/60 Hz, category use A in accordance with IEC 60947-2, category A in accordance with EN 60947-2, suitable for sectionalization in accordance with EN 60898-1, in accordance with IEC 60947-2, in accordance with EN 60947-2 and in accordance with IEC 60898-1. Standards: IEC 60898-1, IEC 60947-2, EN 60947-2, EN 60898-1.
