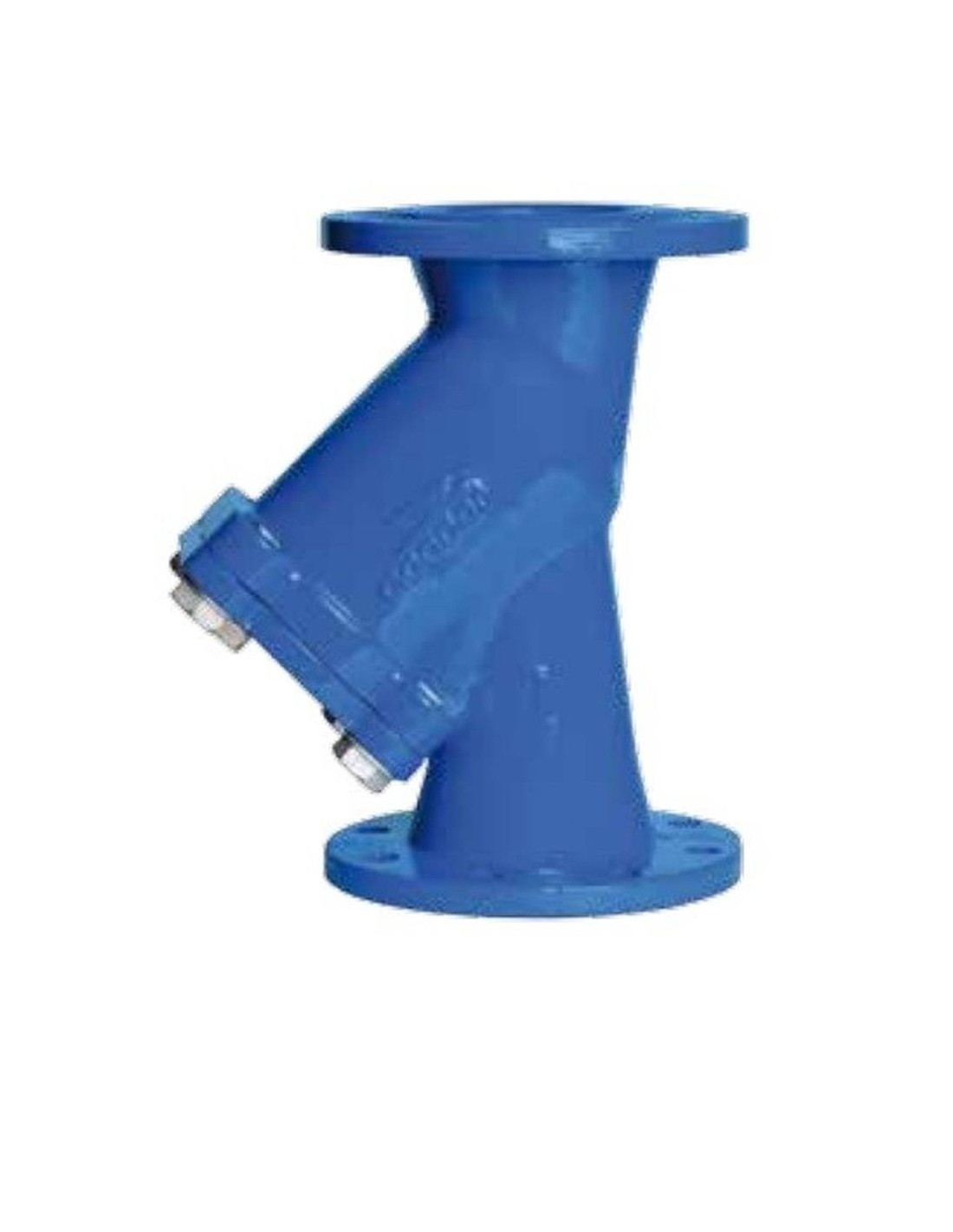

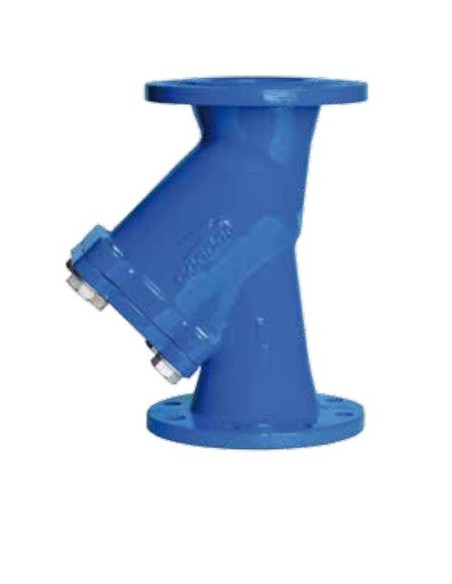

Y filter PN16 ductile iron

With this ductile iron filter you can eliminate all the particles that you do not want to remain in a liquid.

Thus, you will be able to have a purer water flow.

Filter characteristics and PN16

It has a ductile function. This means that you can control how much water flow passes through the tube at a given time.
It supports high pressures to be applied in industry.
It is a device that is easily attached.

APPLICATIONS

• General uses: removal of solids from the flow using a perforated stainless steel screen.
• Designed for applications in water and HVAC systems.

GENERAL CHARACTERISTICS

• Designed according to EN 12516.
• Working pressure PN16.
• Length between flanges EN558-1 (DIN 3202 FI).
• Flange connection according to EN 1092-2PN16 standard.

COATING

• Interior and exterior coating in blue epoxy RAL 5017 or similar.

WORKING CONDITIONS

• Working temperature -10/80 ºC with NBR tip; -10/120 ºC with EPDM tip.

STANDARDS AND TESTS

• Pressure tests as established in
• EN-12266-1
