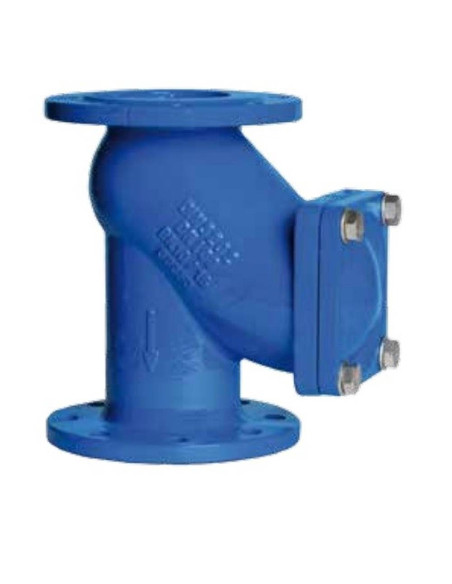

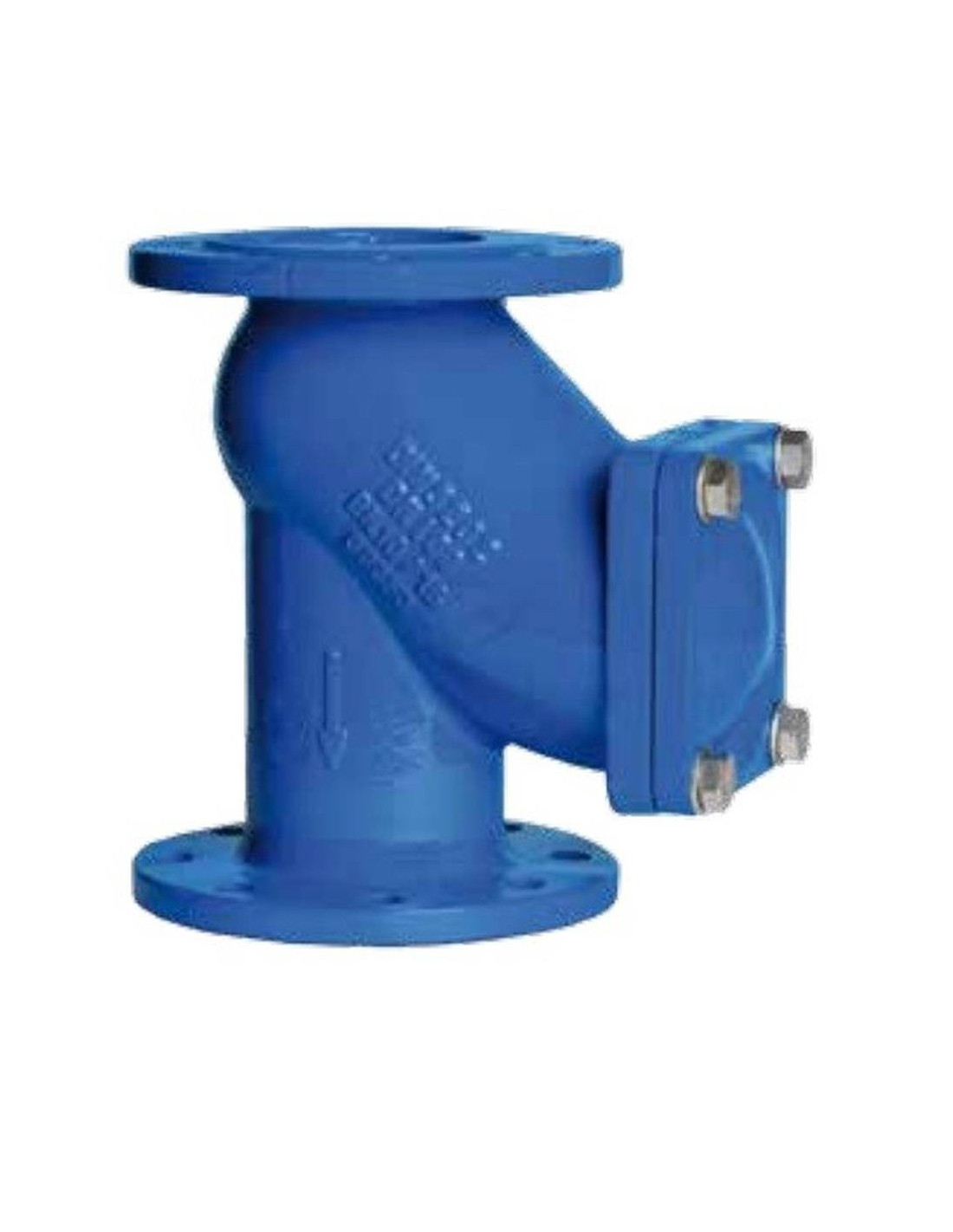

Ball check valve PN16 ductile iron

Ball check valve features

Its design guarantees the total passage of the fluid without the possibility of obstruction and with very low pressure losses. Ideal for high conduction and low pressure needs.

Without the possibility of penetration of external particles into the interior of the piece, total tightness and operation in a vertical or horizontal position
Maintenance-free.

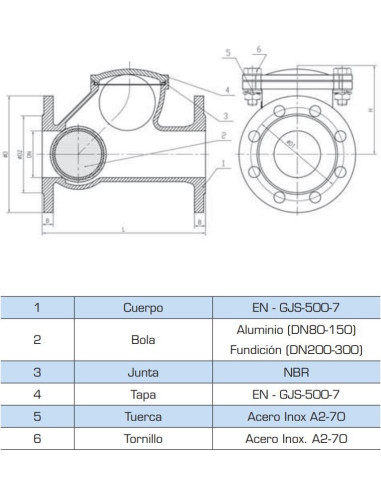

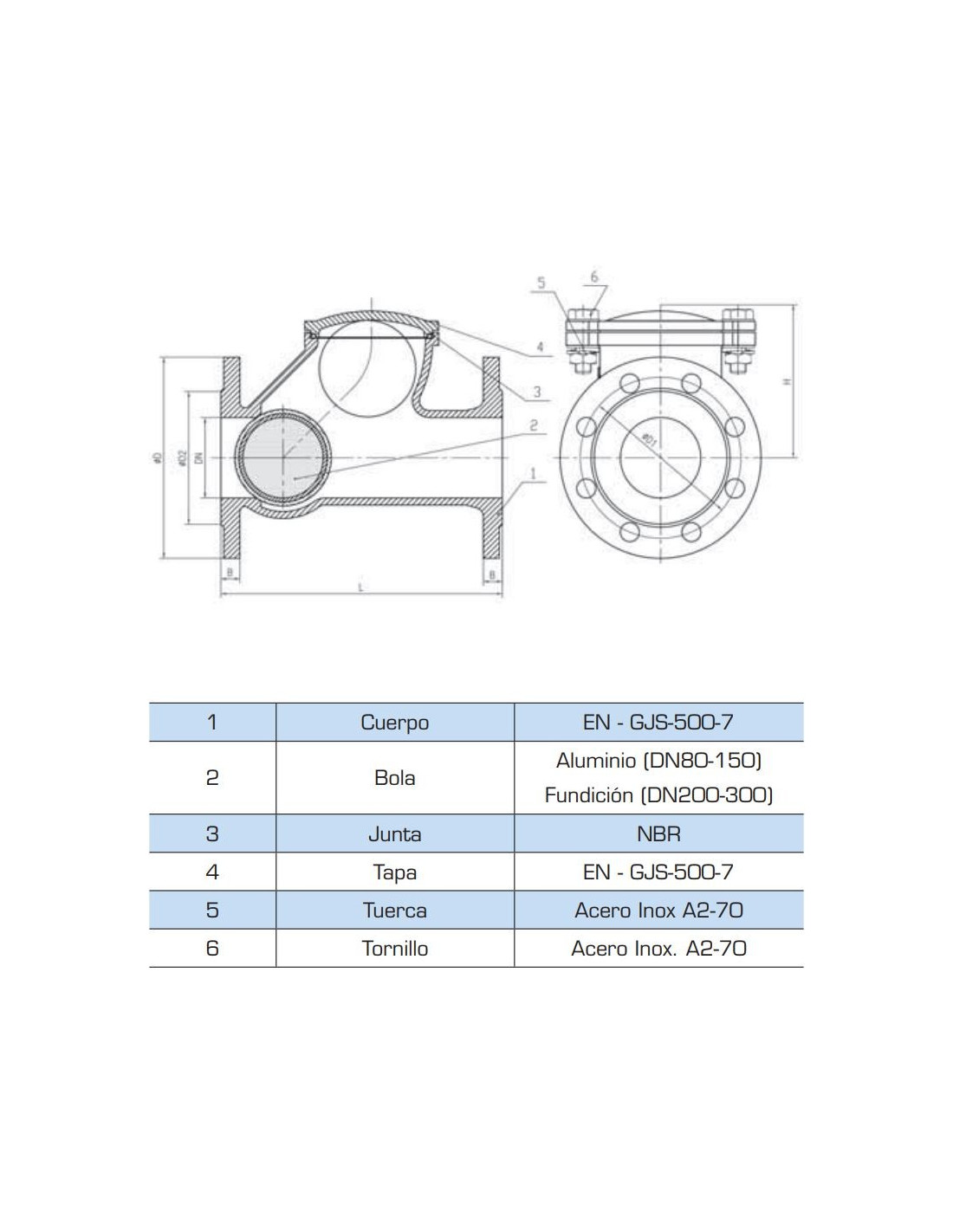

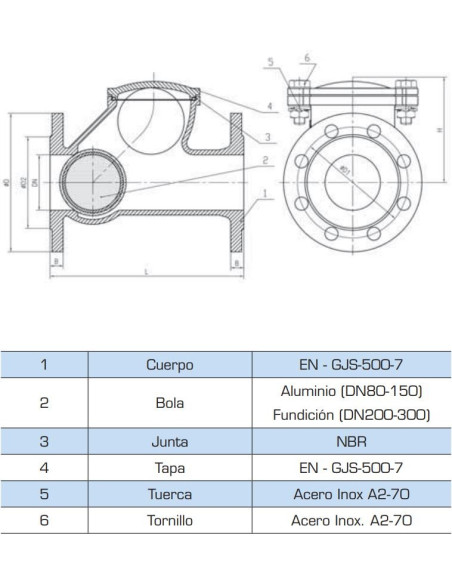

Body made of cast iron with excellent nodularity and oven-baked epoxy coating.

APPLICATIONS

• General uses: wastewater, stagnant fluids, water lifting. (purification, water treatment, pumping...).

GENERAL CHARACTERISTICS

• Designed according to EN 12334.
• Distance between faces according to (DIN 3202-F6) EN558.
• Measurement from DN 80 to DN 300.
• Tightness and operation in vertical or horizontal position.
• Low pressure loss.
• Completely smooth interior surface thanks to the movement of the ball.
• Self-cleaning ball.
• Mechanized seat for greater tightness.
• No risk of ball blocking, straight passage.
• Quick and easy lid removal.
• The lid allows the ball to be dislodged.

COATING

• Body: baked epoxy 250 µ, RAL 5017.

WORKING CONDITIONS

• Maximum working temperature 70 ºC.
• Working pressure: PN 16 (DN 80 - DN 150). PN 10 (DN 200 - DN 300).

STANDARDS AND TESTS

• Manufactured in accordance with the requirements of the European directive 97/23/CE < Equipment under pressure>: category III module H (DN 40 – 350 and DN 1” – 2”1/2).
• Tests carried out and established according to EN 12266-1.

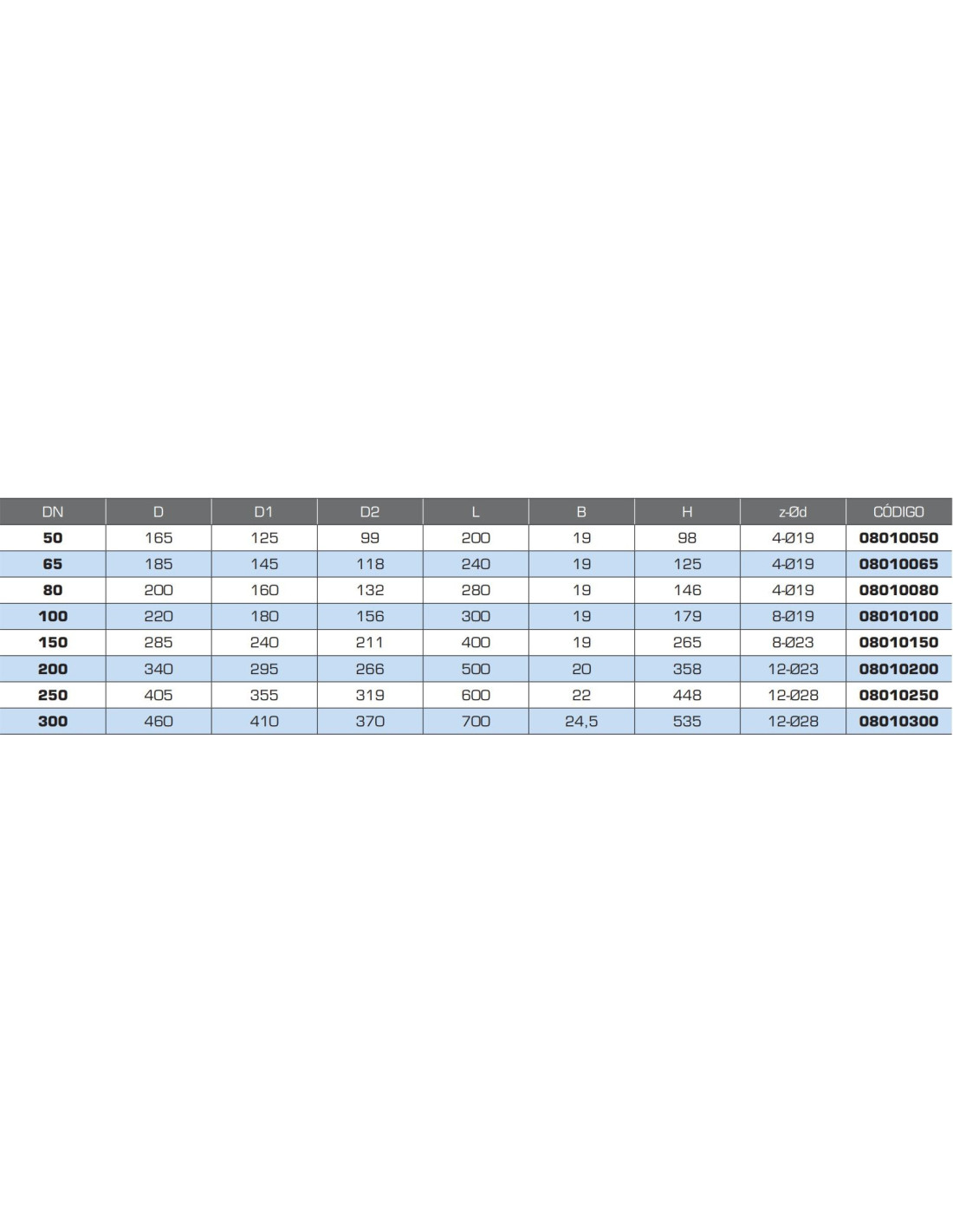

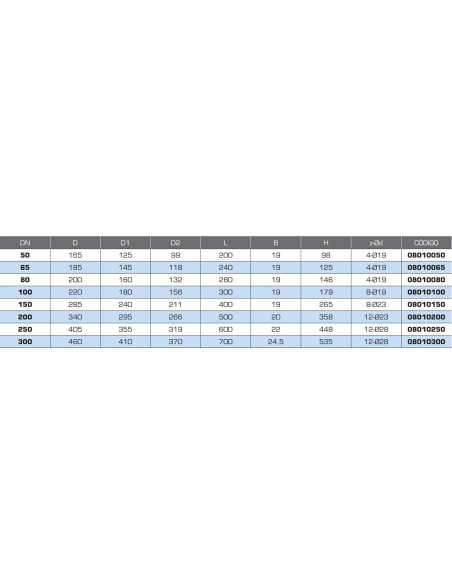

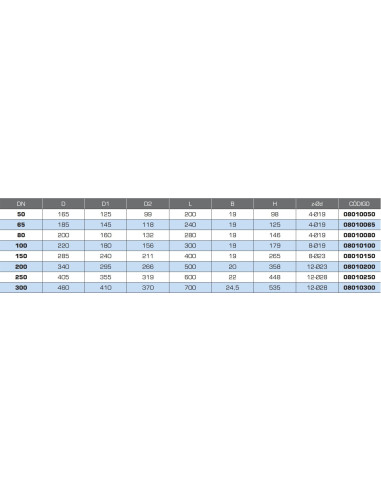

CONNECTION

• Mounting length according to EN 558-1 series
• 48, DIN 3202/1 series F6.
• Assembly of flanges according to EN 1092- 2: (ISO 7005-2) PN 10/16.
